Product: Wine
Container type: Glass bottles
Capacity: 5,000 bottles per hour (bph)

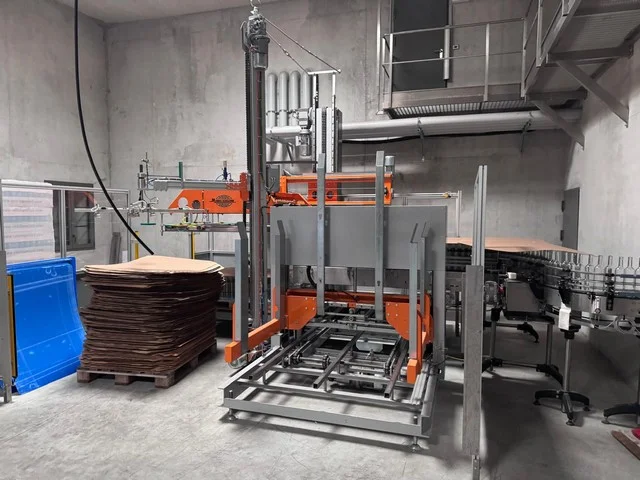

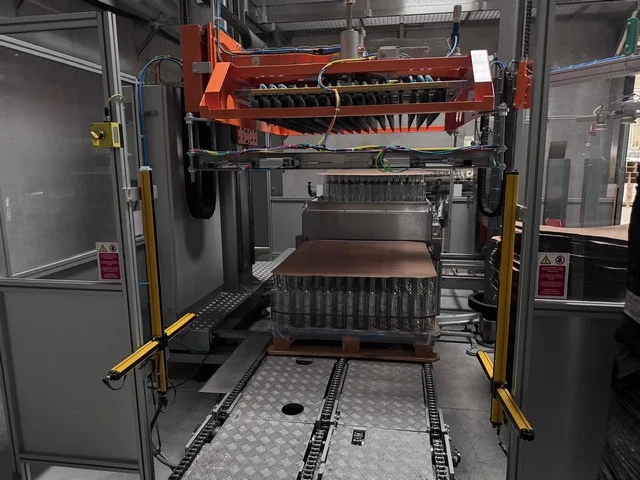

Depalletizer – Mondo & Scaglione
Model: DEPA D/B A PRESA
Year: 2019
Operating system: Inflatable bars
Layer pad removal system

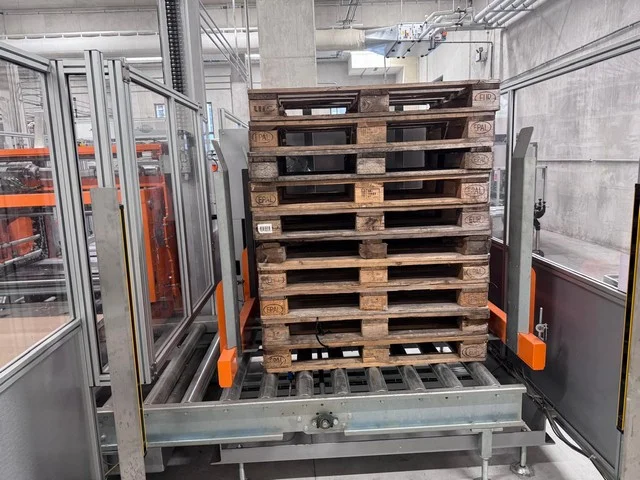

Empty pallet magazine

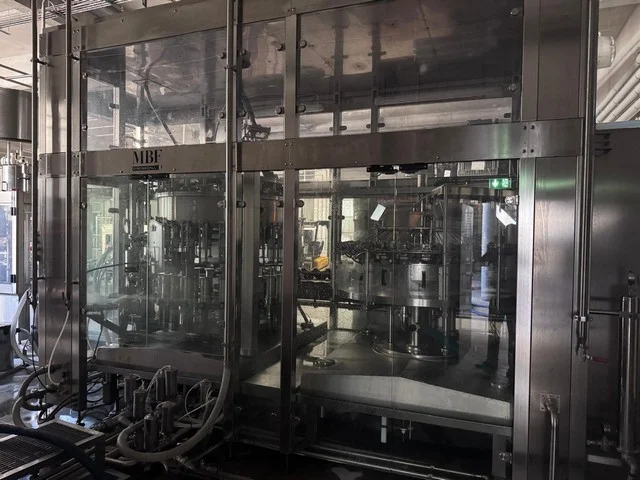

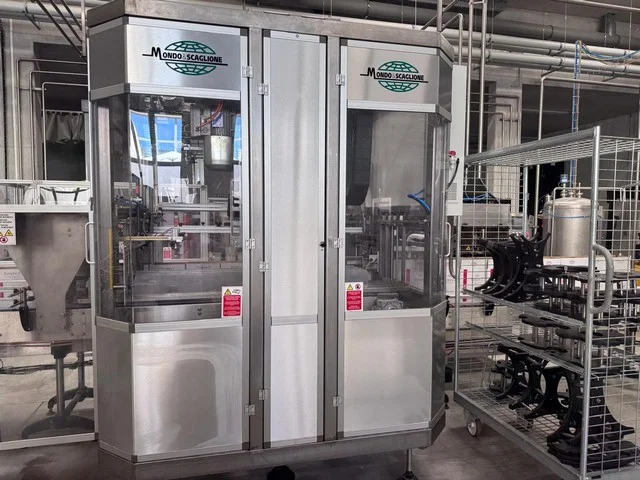

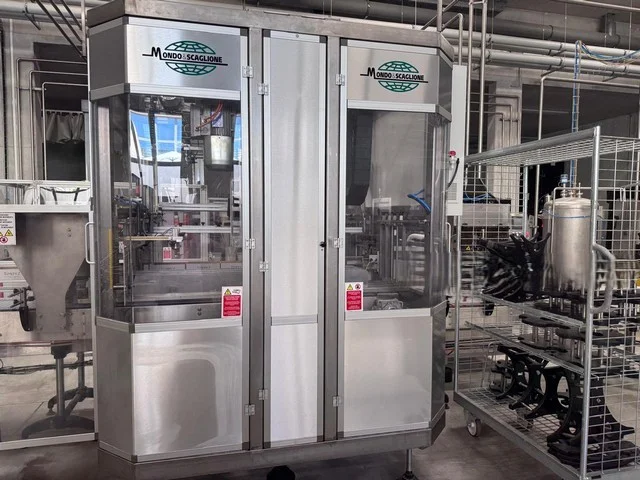

MBF Monoblock
Direction of operation: Clockwise

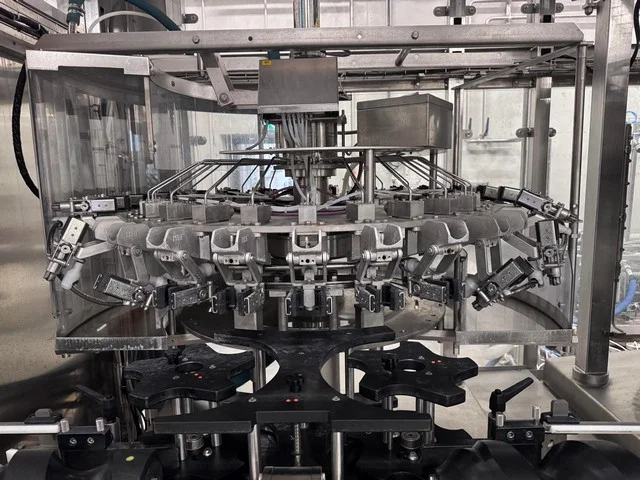

Bottle rinser: 25 clamps with fixed nozzles, single water treatment

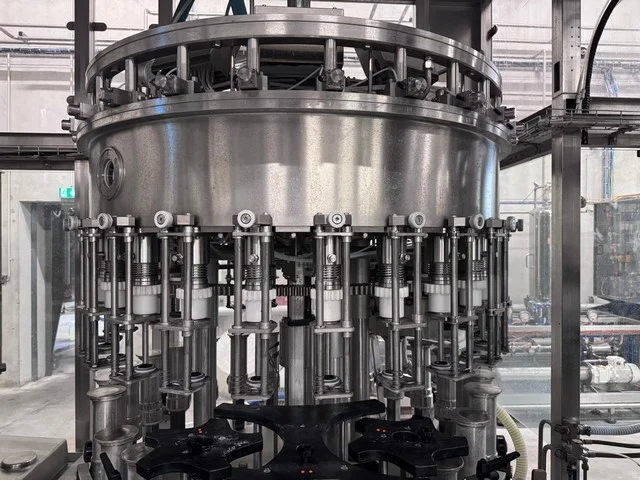

Filler: 25 mechanical gravity filling valves
Centralized fill level adjustment

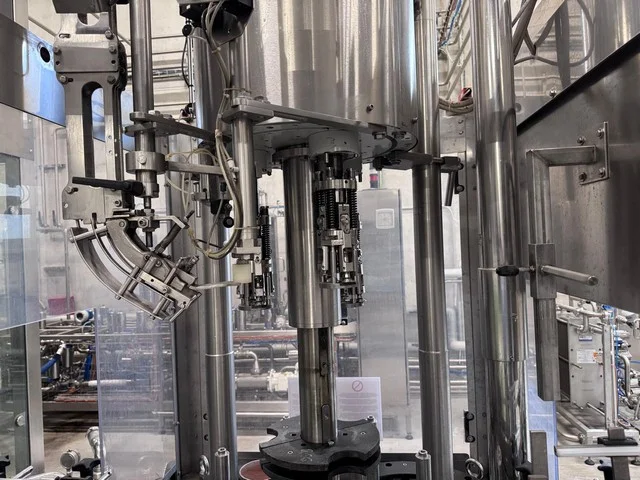

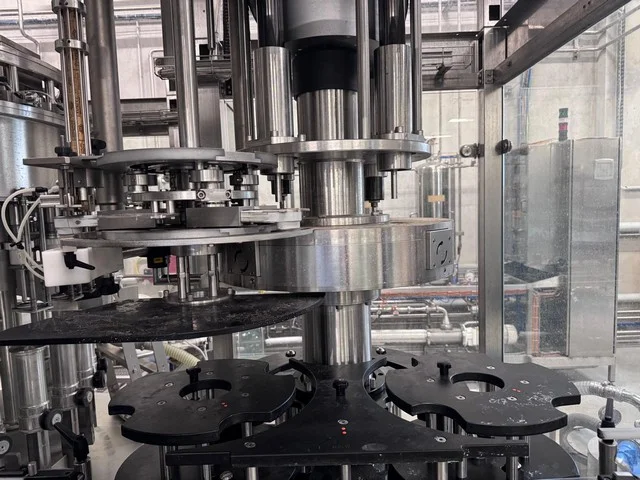

Corker: 4 heads for natural straight cork
Vacuum system before cork insertion
Pick & place cork feeding system

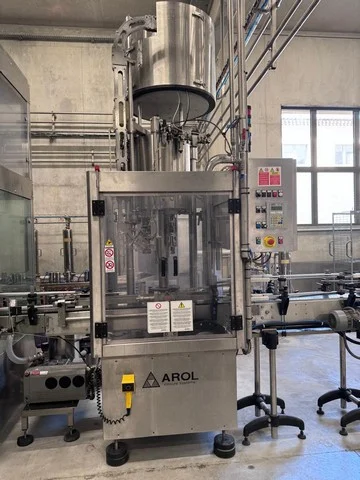

Arol Screw Capper
Model: EURO VA
Year: 2005
Direction of operation: Clockwise
3 heads for 30 × 60 Stelvin aluminum screw caps

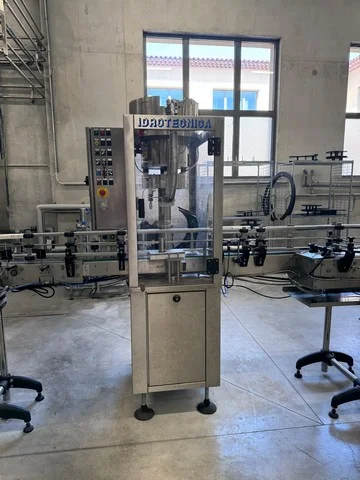

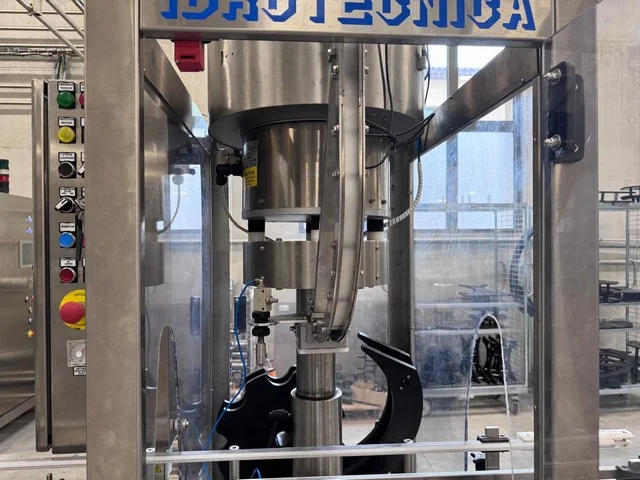

Idrotecnica T-Cork Capper
Model: TAPPATORE TT
Direction of operation: Clockwise
Single head for glass T-top corks

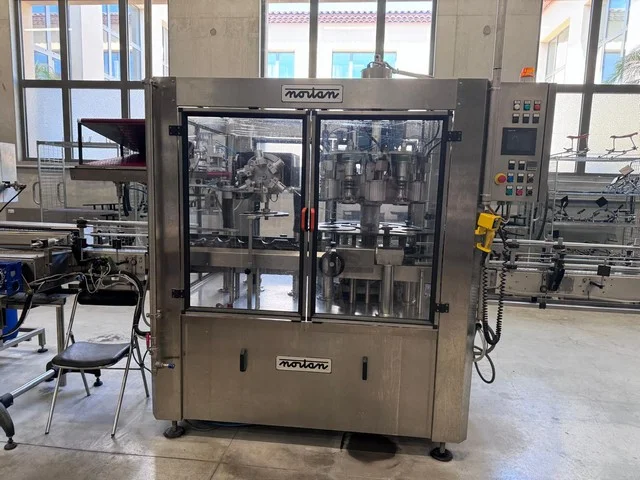

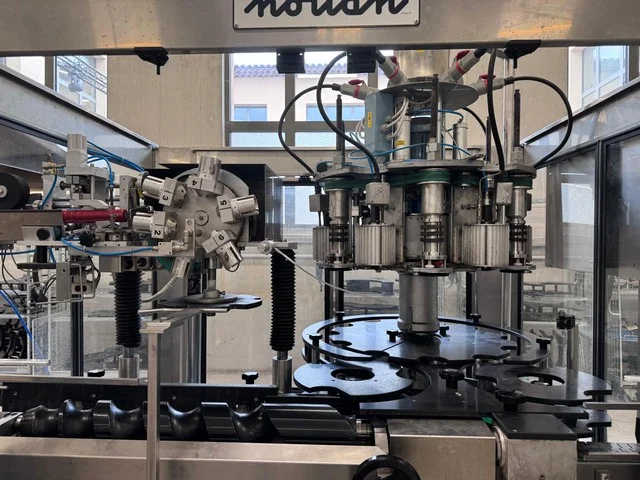

Nortan Capsule Applicator for polylaminate and PVC capsules
Direction of operation: Clockwise
6 capsule dispensing bells
6 rolling heads + 6 heat-shrinking heads
Capsule magazine with tray feeder

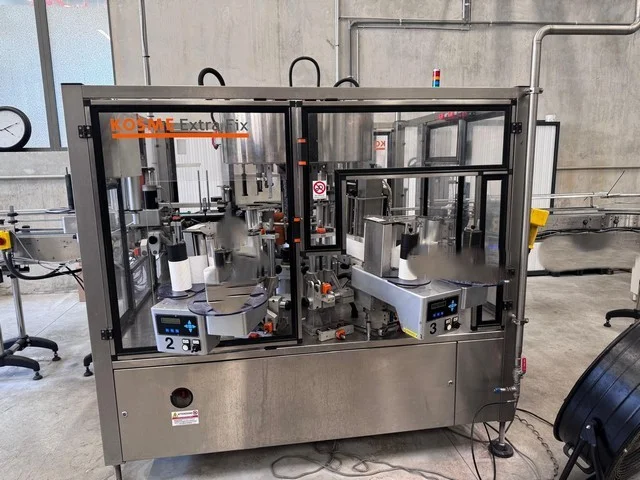

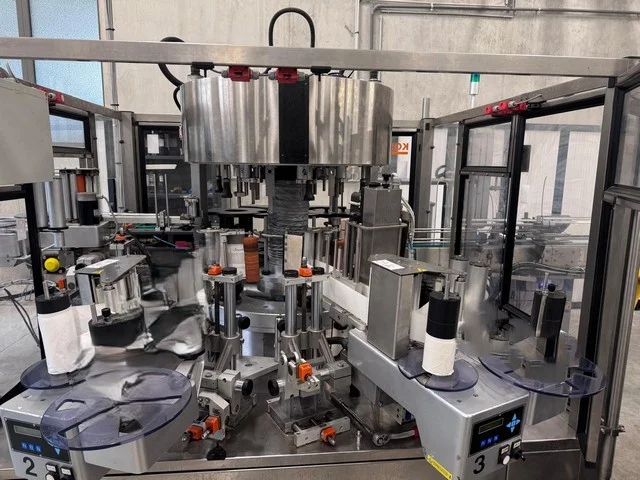

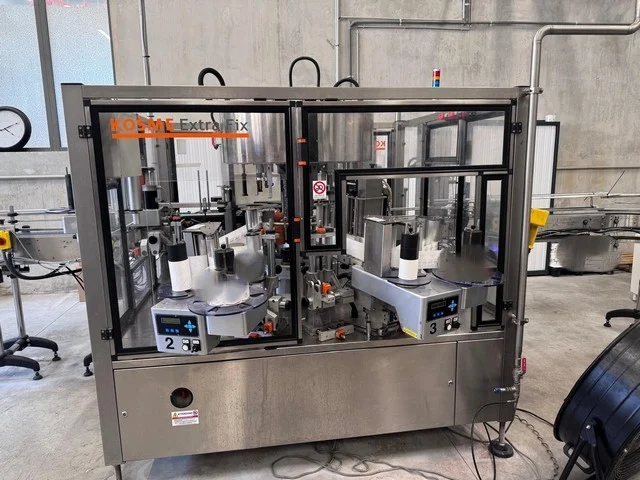

Kosme Labeling Machine
Direction of operation: Counter-clockwise
6 electronic cam-driven bottle plates
3 self-adhesive labeling stations
Labels that can be applied:
Front label
Back label
Wrap-around neck label (collar/collarette)
Prepared for optical bottle centering
Thermal Transfer Printer

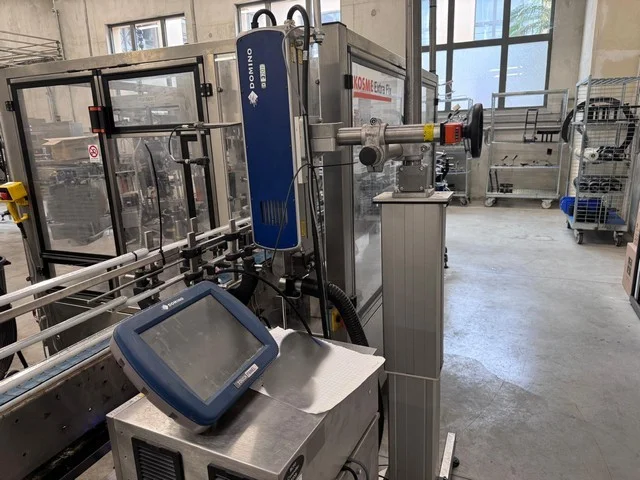

Domino Laser Coder
Year: 2019

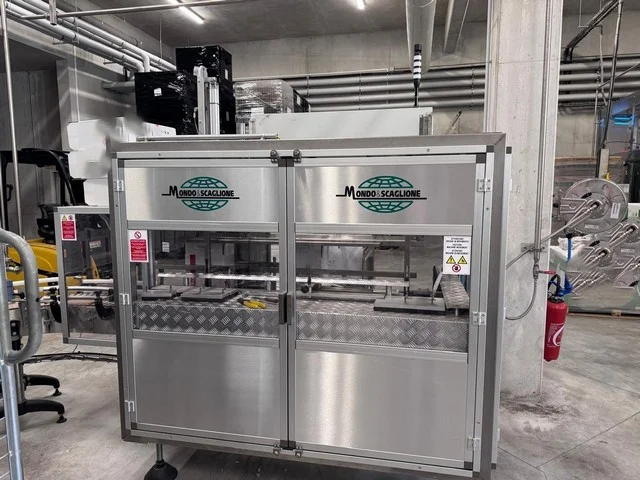

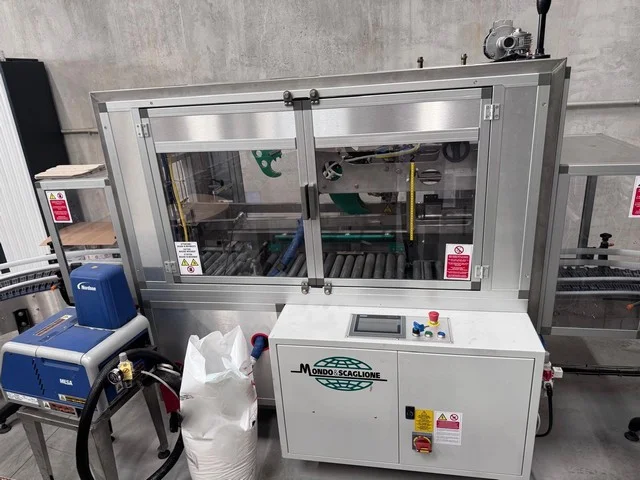

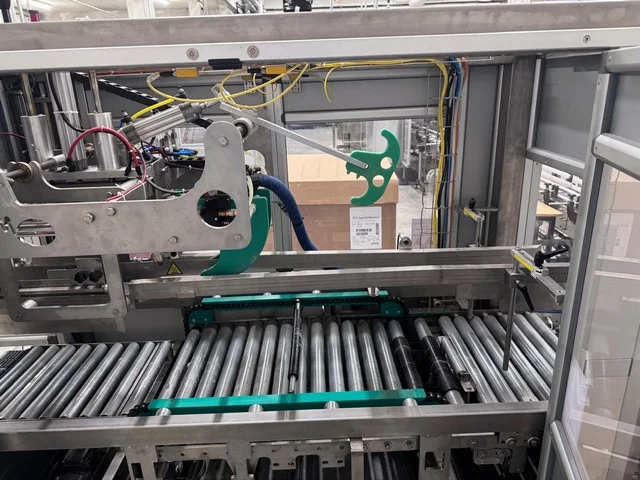

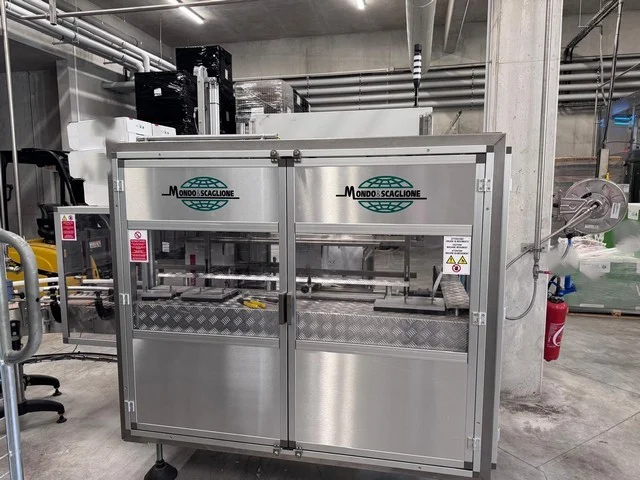

Case Erector – Mondo & Scaglione
Model: FORMATRICE 382/C
Year: 2019

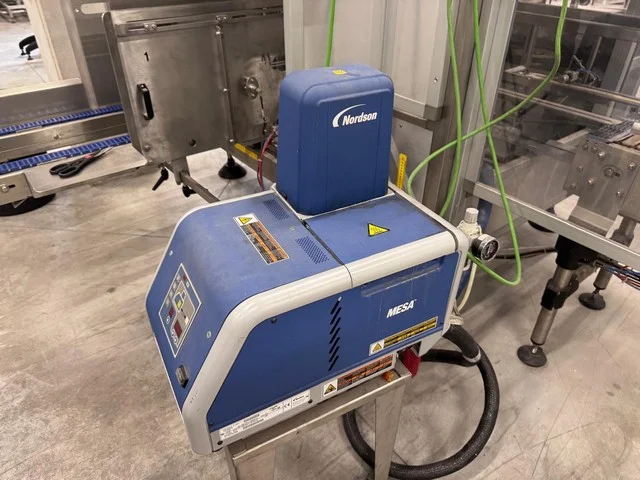

Bottom sealing with Nordson Mesa hot-melt system

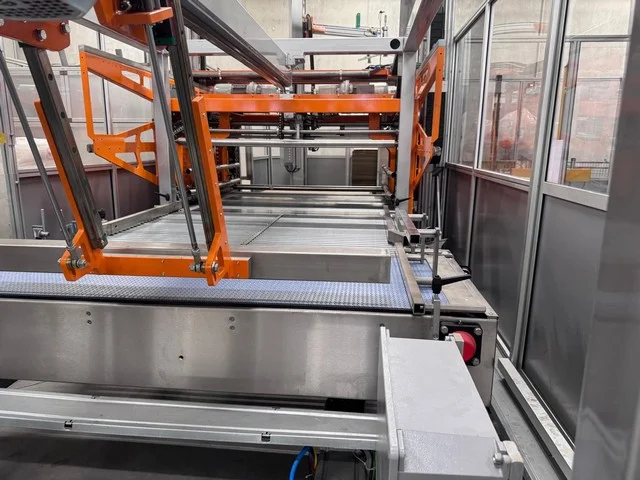

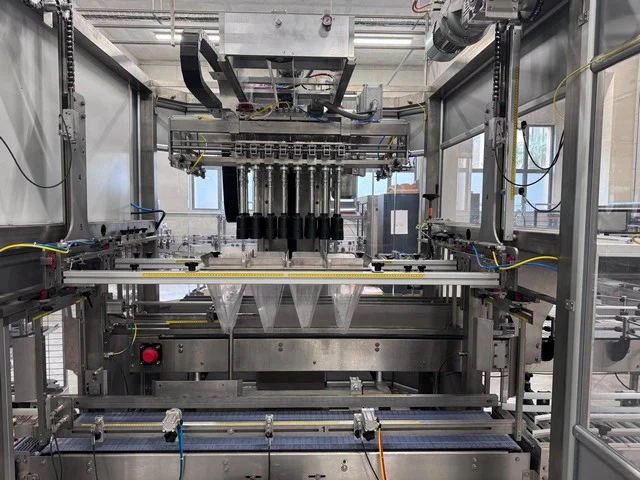

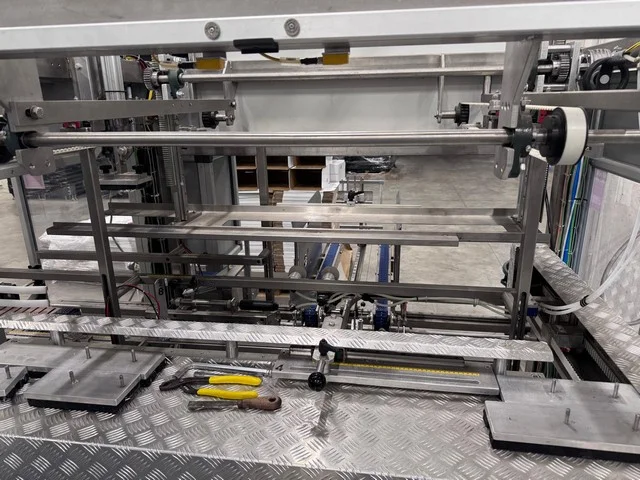

Case Packer – Mondo & Scaglione
Model: INCARTONATRICE M.I.6. E.B.C.
Year: 2019
Adjustable packing head for:
4 cartons in 3 × 2 configuration, or
2 cartons in 4 × 3 configuration

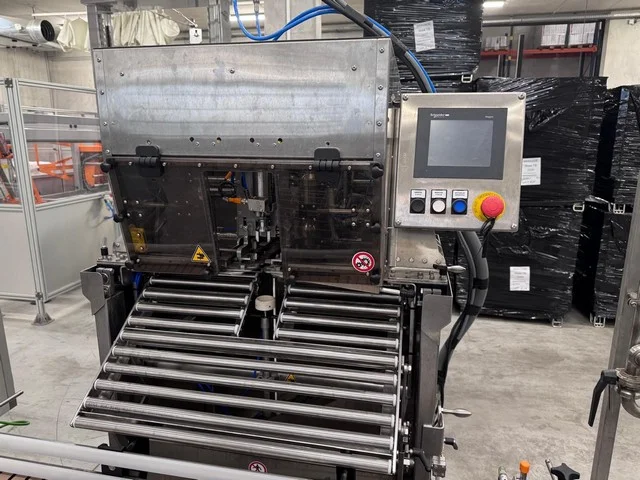

Case Sealer – Mondo & Scaglione
Model: INCOLLATRICE CRCE
Year: 2019

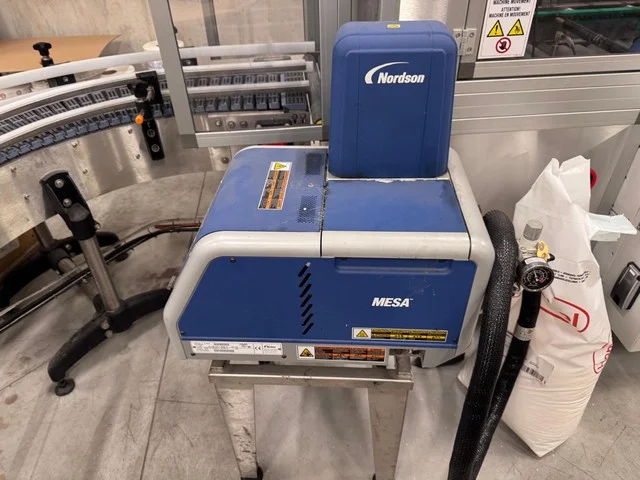

Top sealing with Nordson Mesa hot-melt system

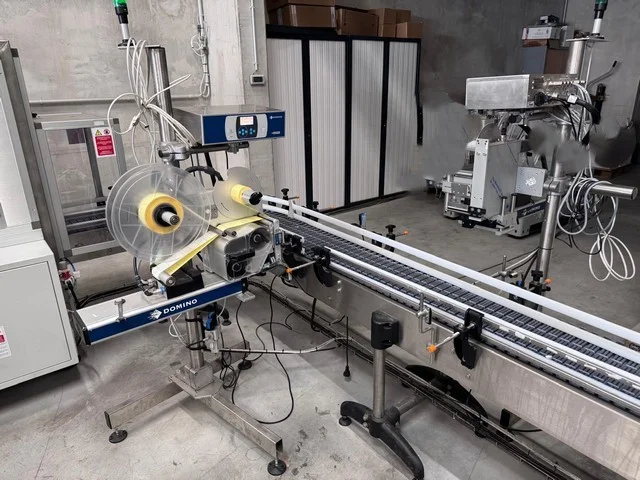

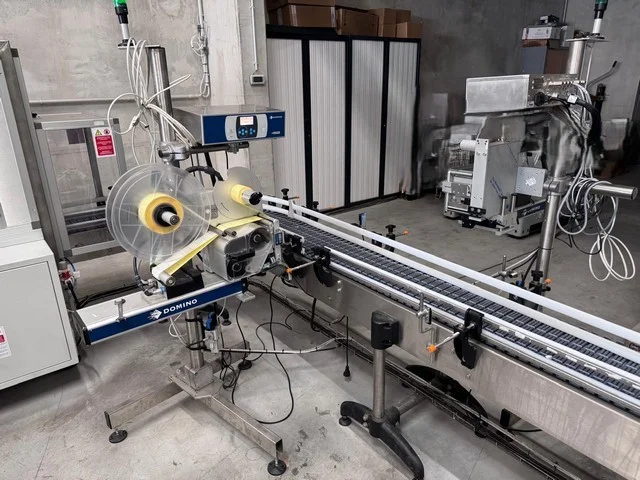

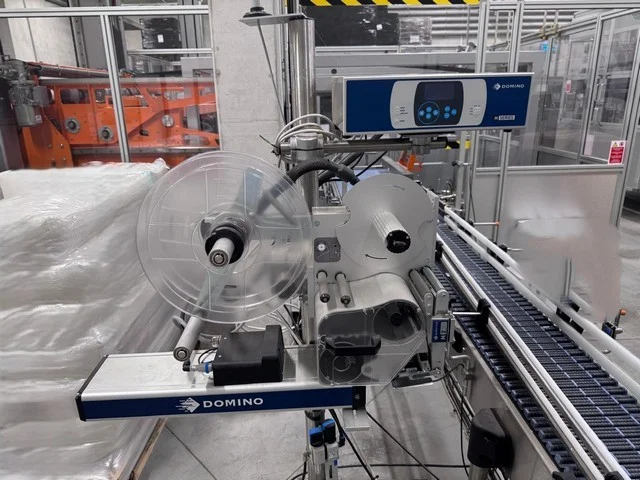

Domino Carton Labeler
Year: 2019

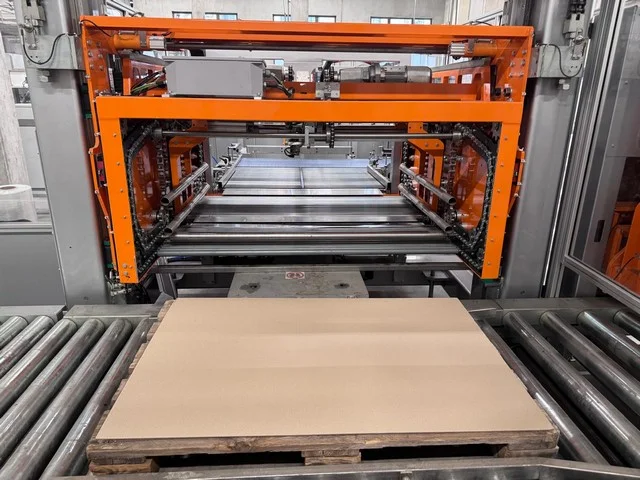

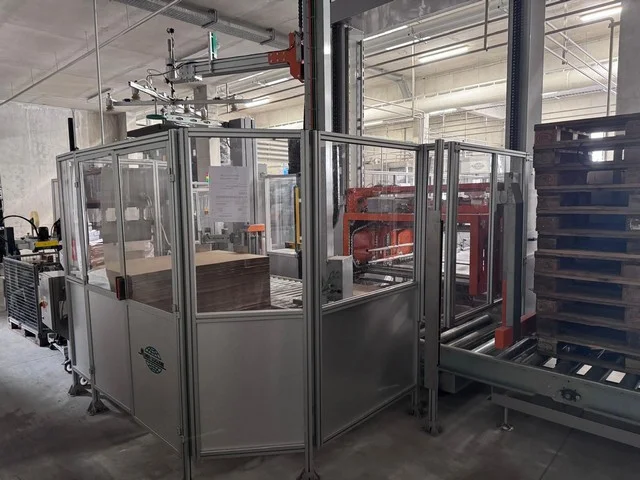

Palletizer – Mondo & Scaglione
Year: 2019
Push-type palletizer
Empty pallet magazine
Layer pad insertion system

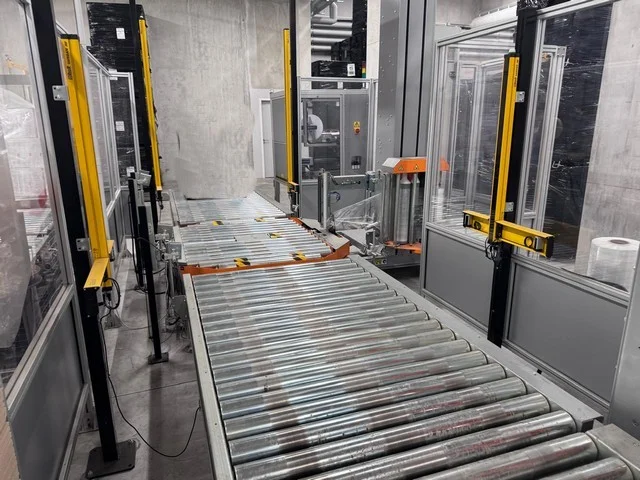

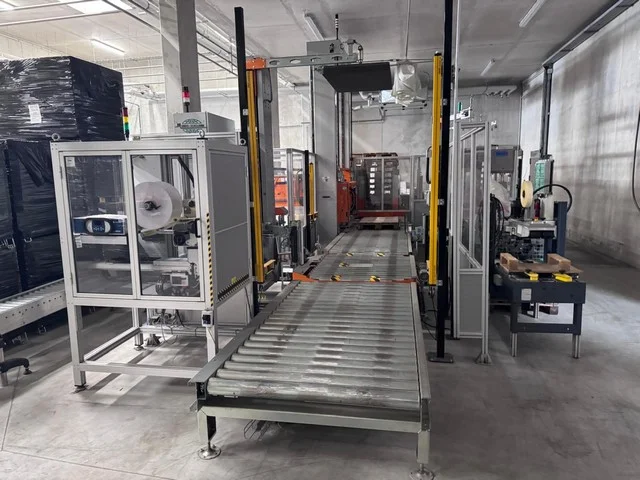

Tosa Pallet Wrapper
Model: 085
Year: 2019
Rotary turntable wrapping system

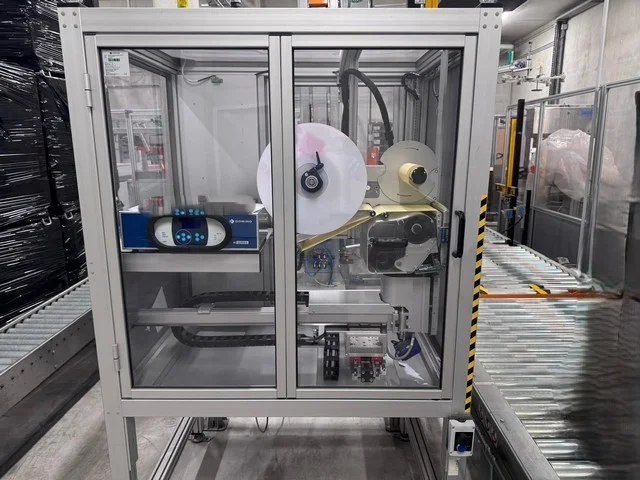

Domino Pallet Labeler
Year: 2019
Safey protection
