The equipment in detail

Full technical description

Used Fimer bottling line for sparkling wine and still wine is listed in our complete bottling lines inventory under reference NP 717. Manufacturer: Fimer. Model: BOTTLING LINE. Listed year: 2009. Listed output: 2,700 bottles/hr. Actual output must be assessed for your product and container format.

Product: wine
Type of container processed: glass bottles
Speed: 1,500 bph sparkling wine, 750 ml format
2,700 bph still wine, 750 ml format
Loading table

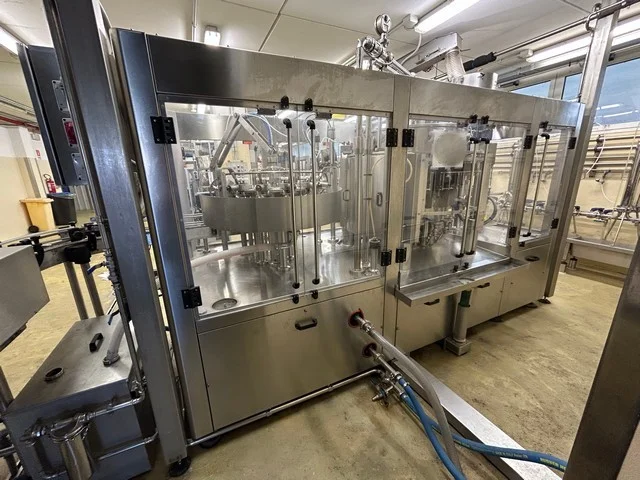

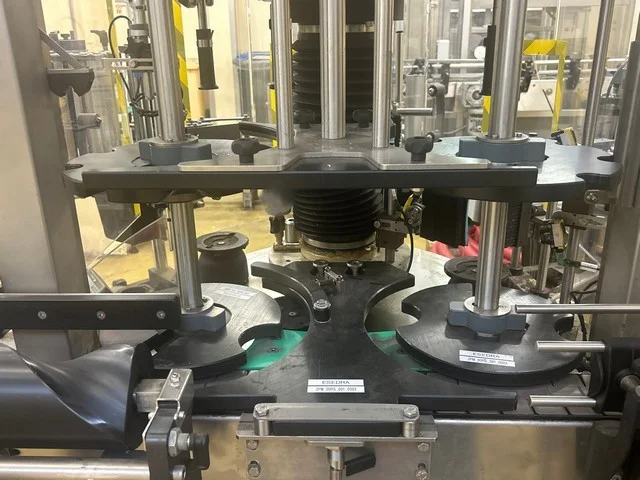

Fimer 12.16.1 monoblock
Model: S.D.R.TI 12.1.16.1 S.P.F. VA
Year: 2009
Counterclockwise

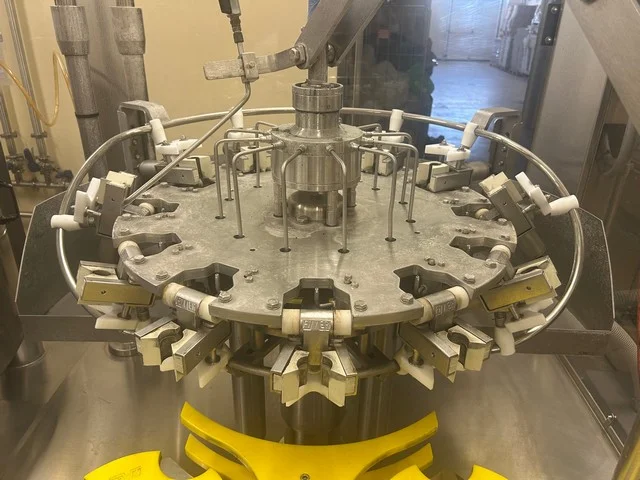

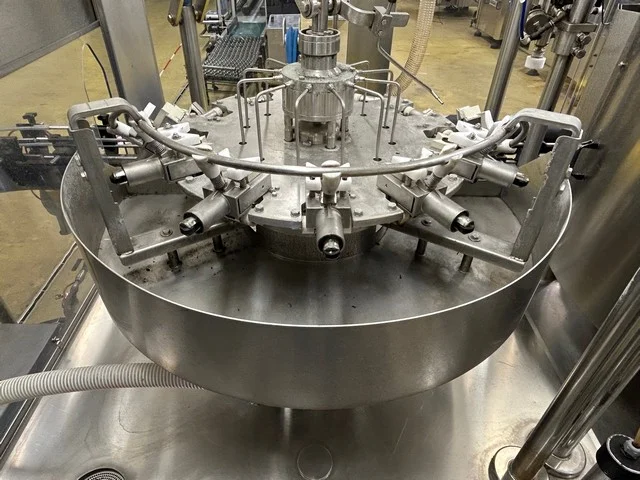

12-clamps rinser with fixed nozzle

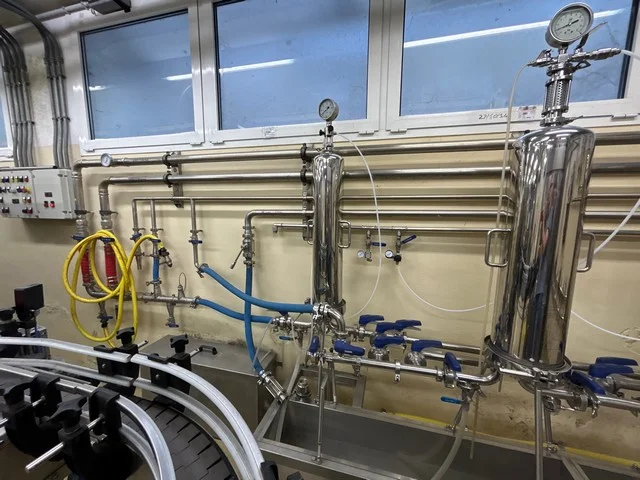

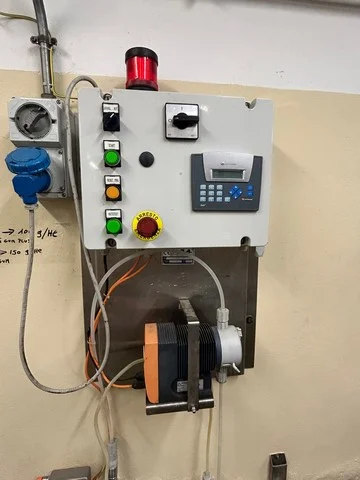

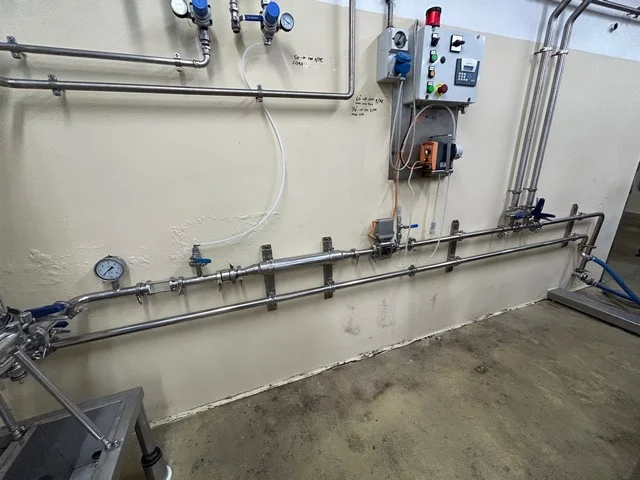

1 water treatment

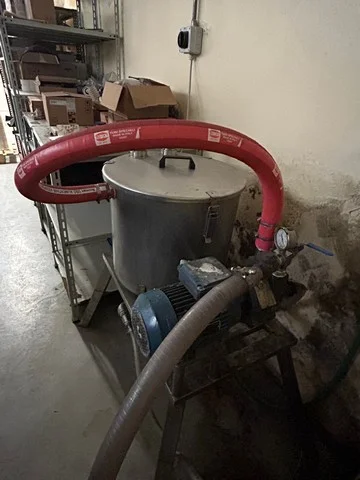

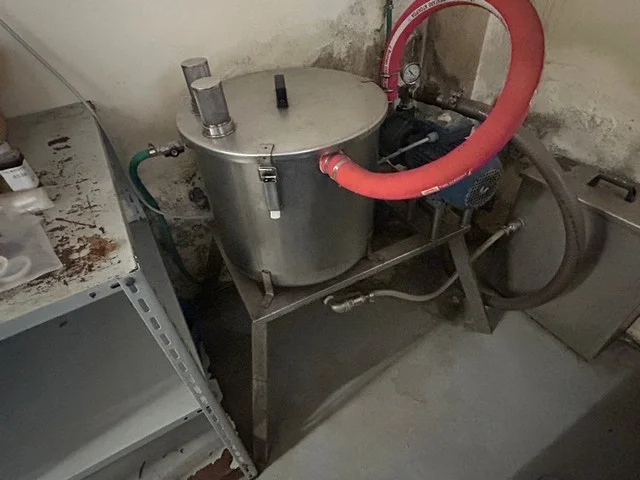

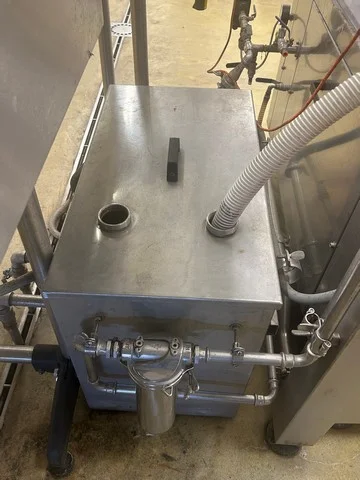

Recirculation tank

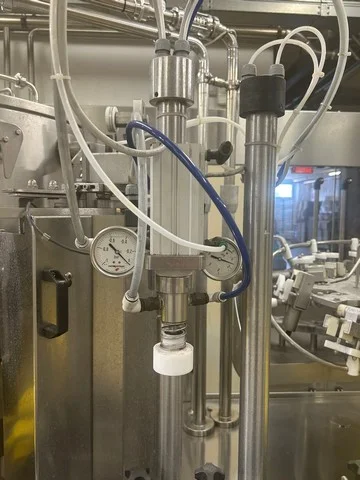

Vacuum and injection station before filling

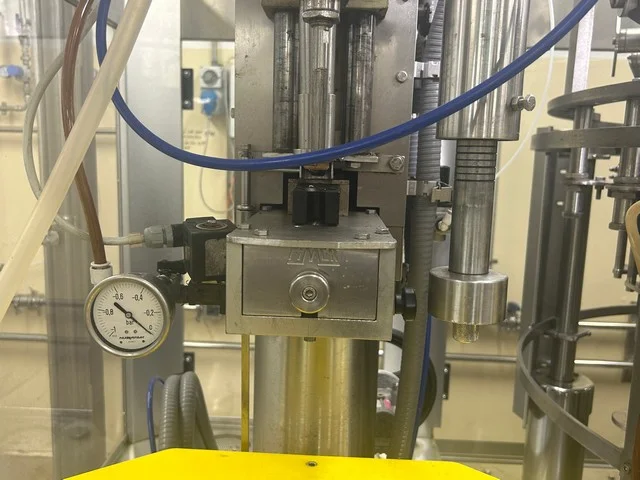

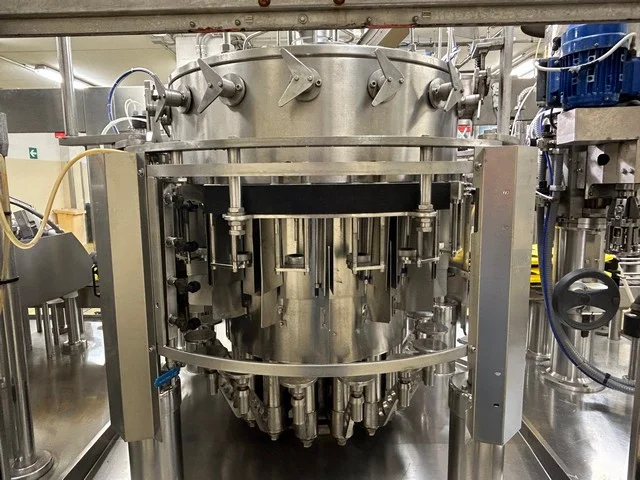

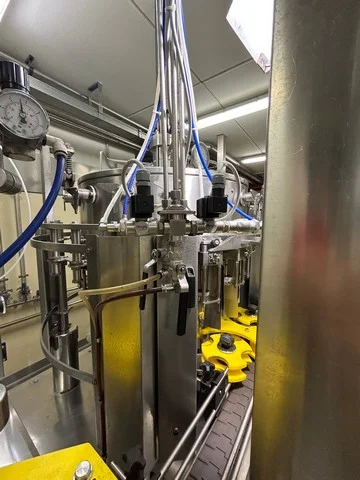

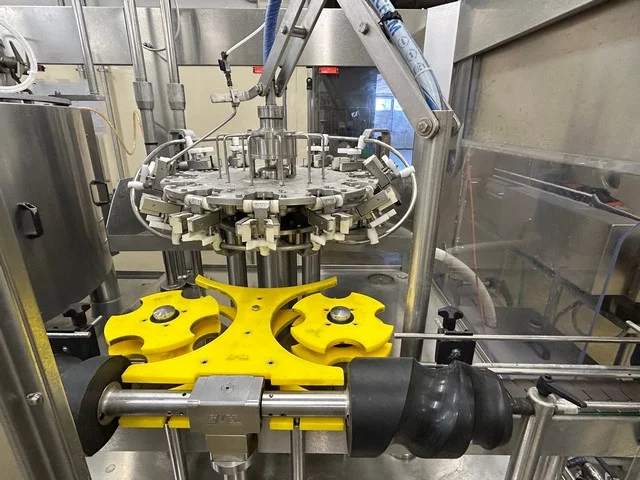

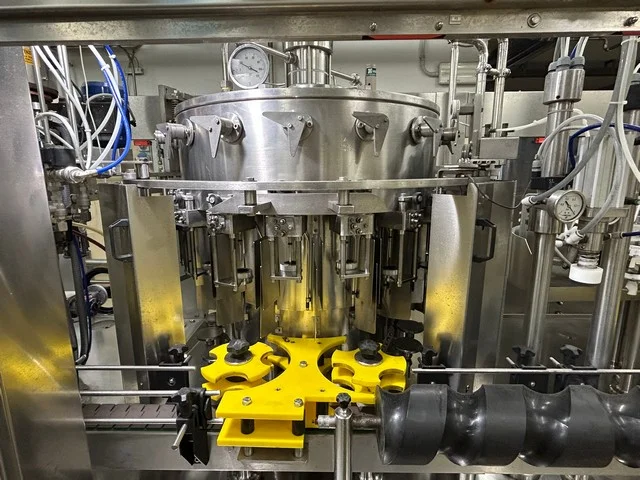

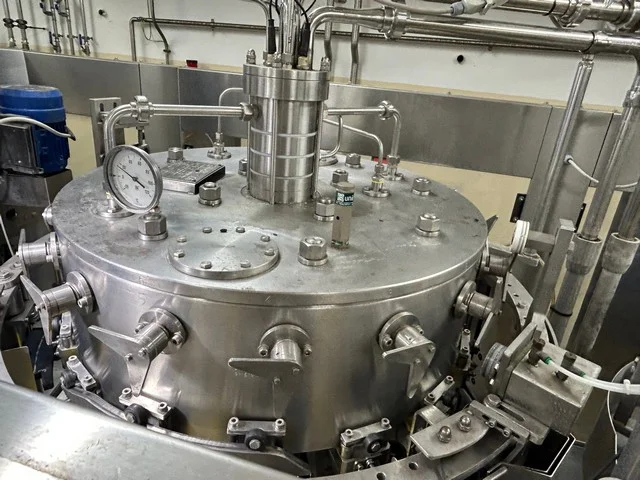

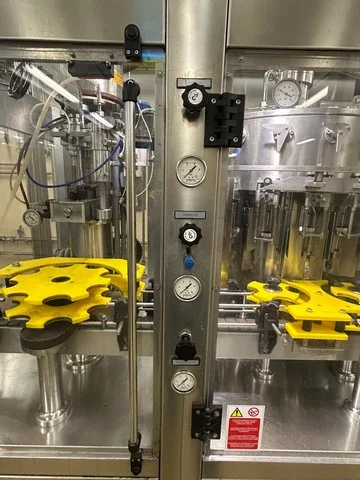

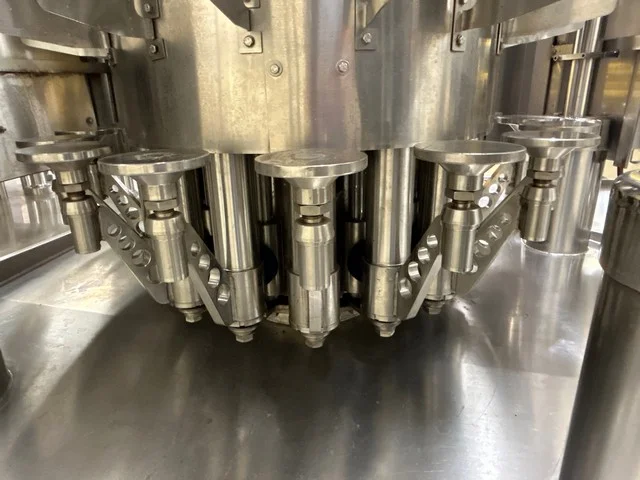

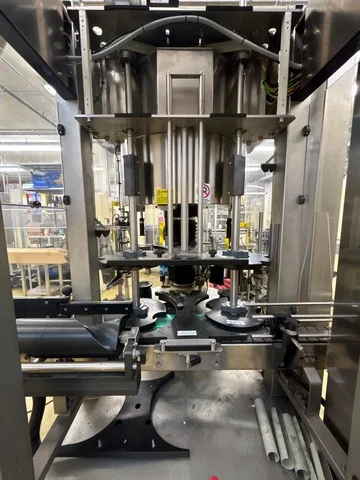

Isobaric filler with 16 mechanical valves
Valve functions: double pre-evacuation/degassing
Leveler before corking

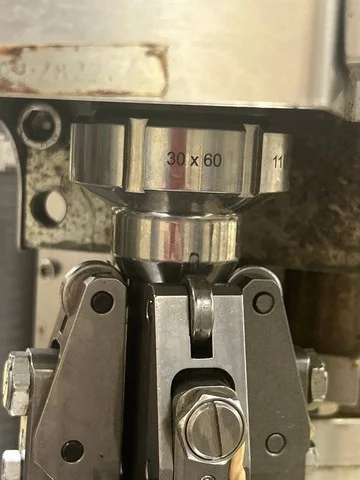

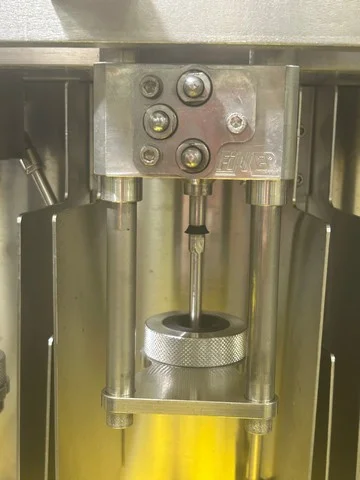

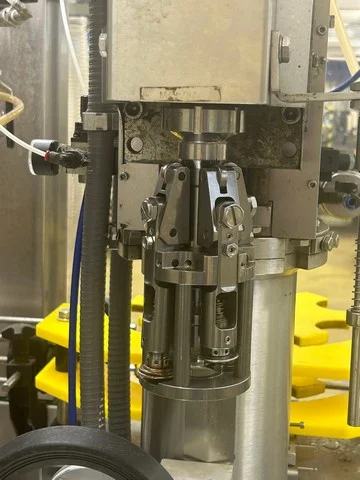

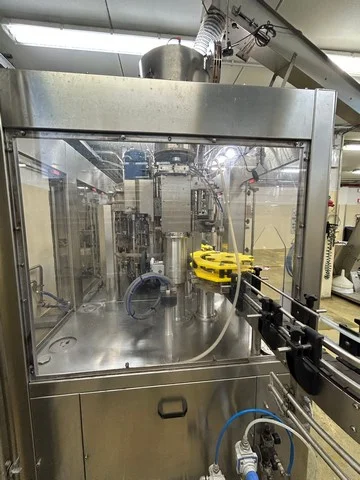

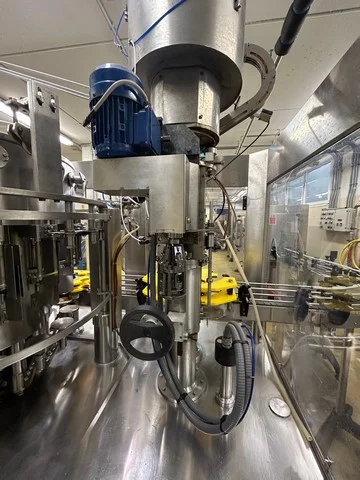

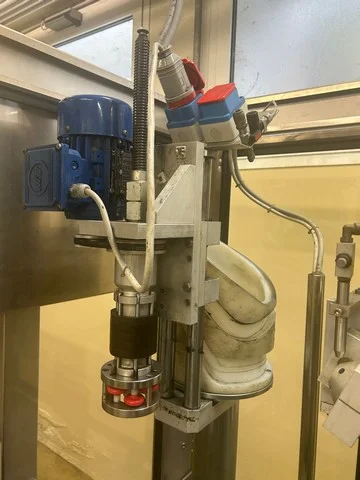

Single-head rotary corker for mushroom cork, straight cork and aluminum screw cap (30x60)

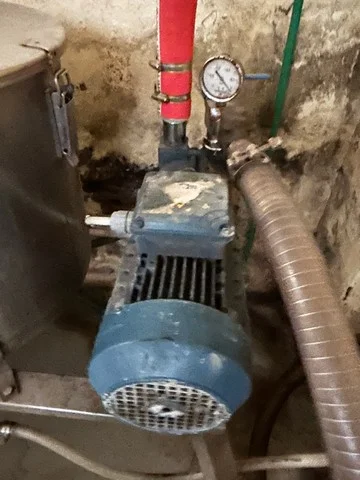

Vacuum system before corking with straight cork
Distribution system: pick-and-place for aluminum screw cap

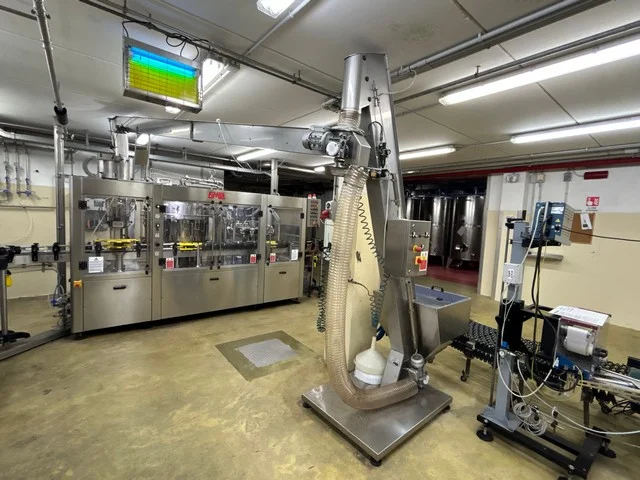

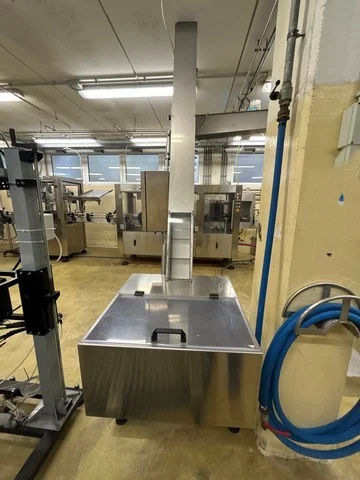

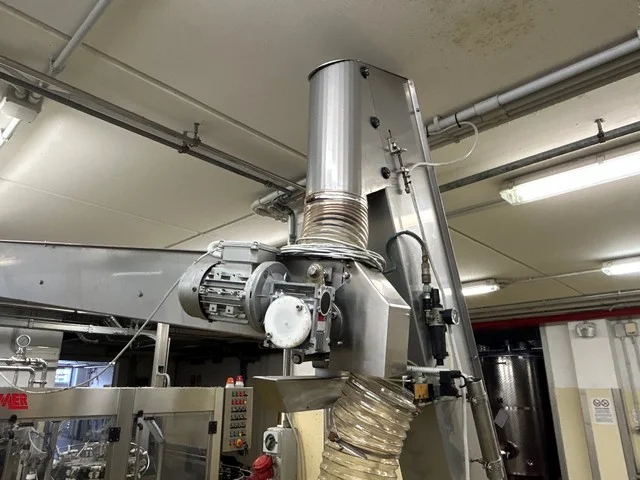

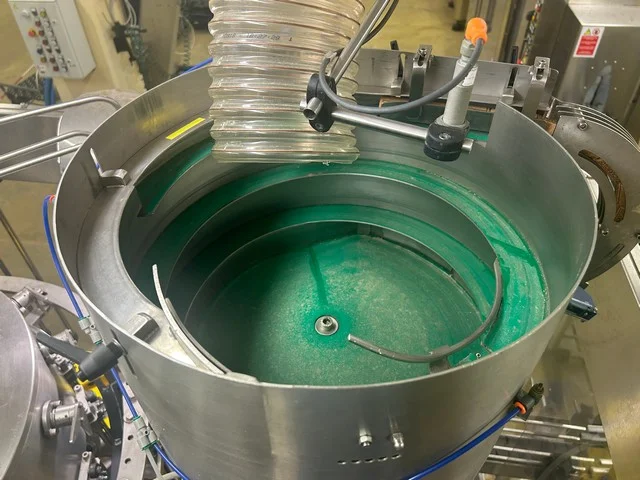

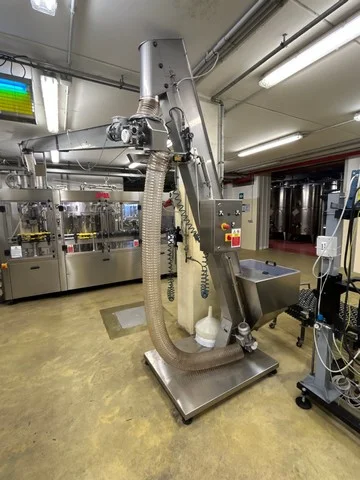

MAR.CO. mechanical cap elevator for straight corks and aluminum screw caps
Model: A10 110
Year: 2011

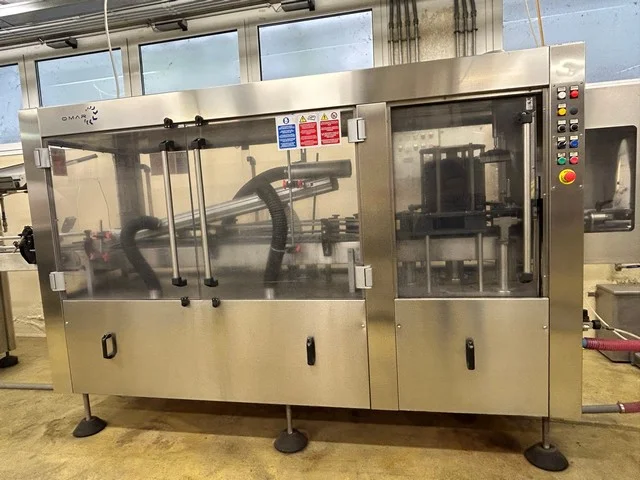

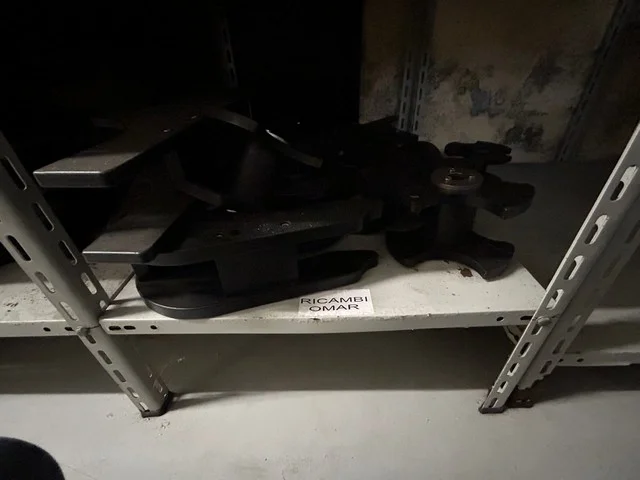

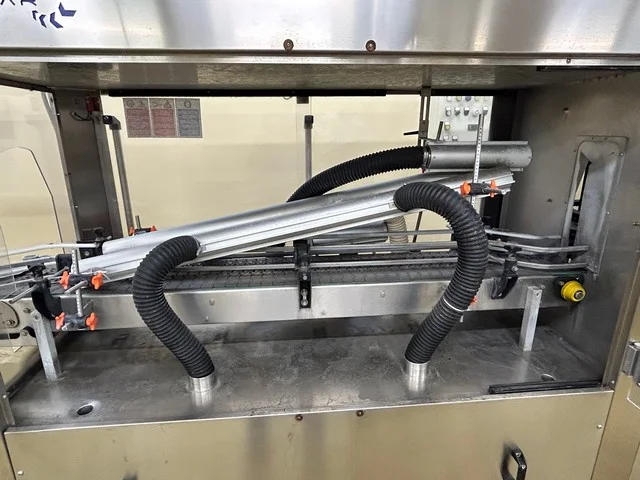

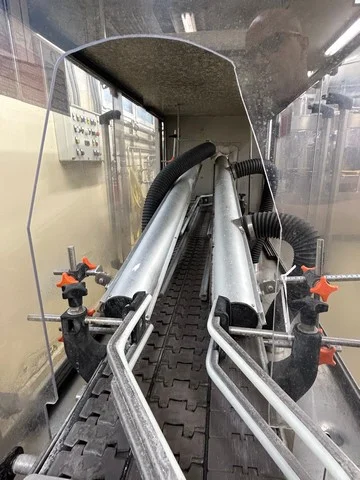

Omar single-head air-blade washer/dryer
Model: LAB12SX
Year: 2011

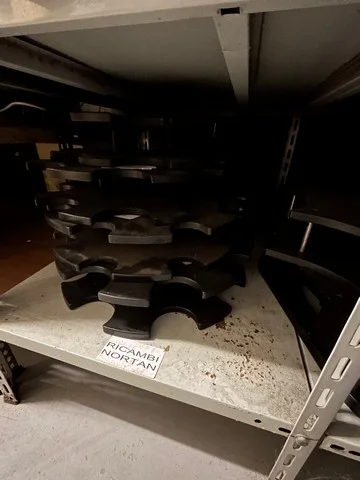

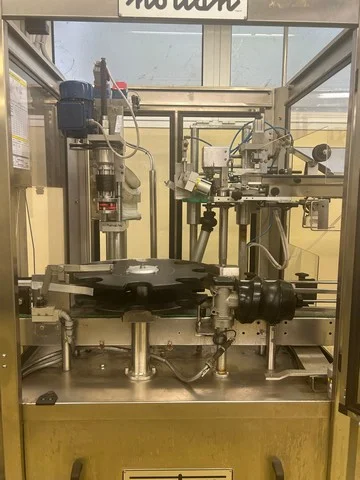

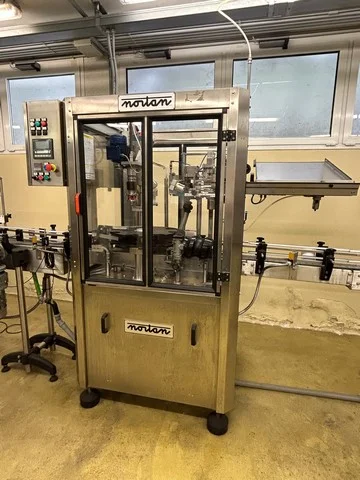

Nortan single-head capsule applicator for PVC and polylaminate capsules (prepared for large capsules)
Model: UNICAP 35 TRS
Year: 2010
Plateau capsule magazine
Incoming cap presence control
Outgoing capsule presence control

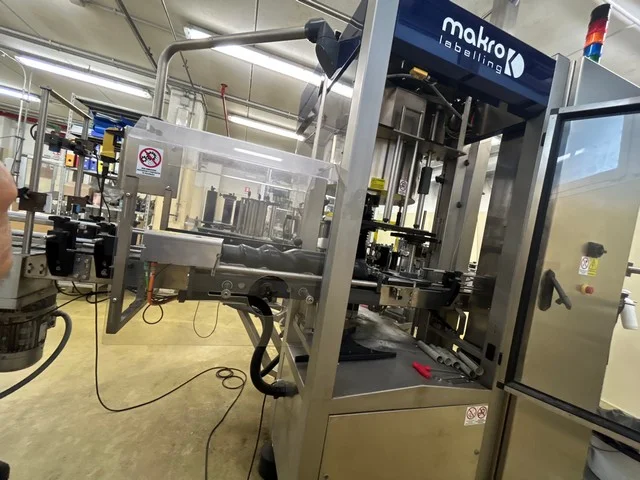

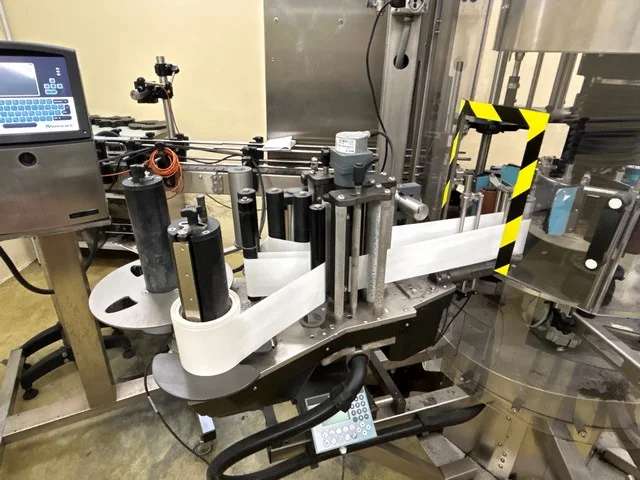

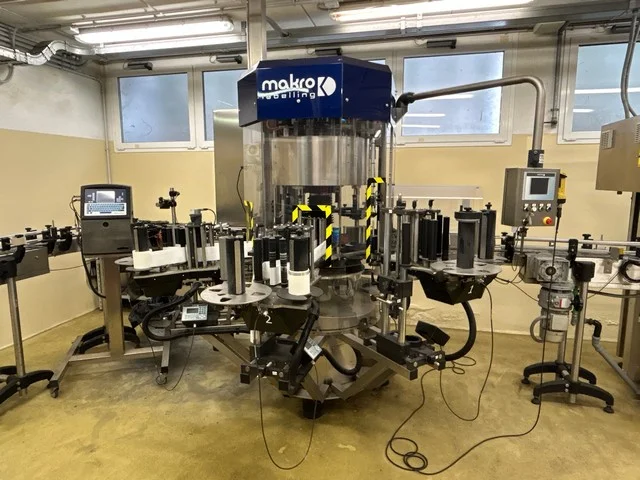

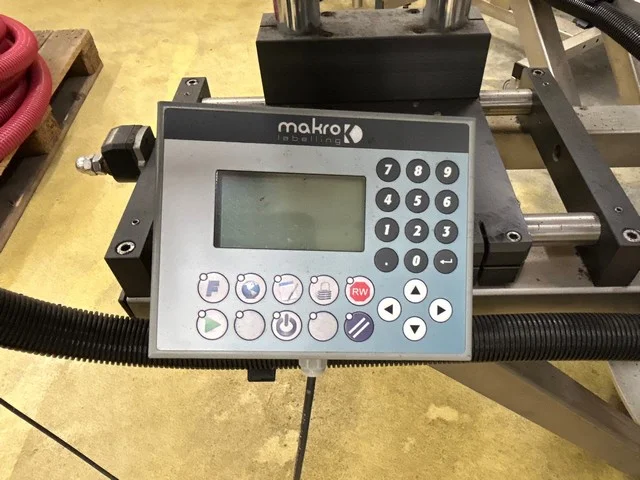

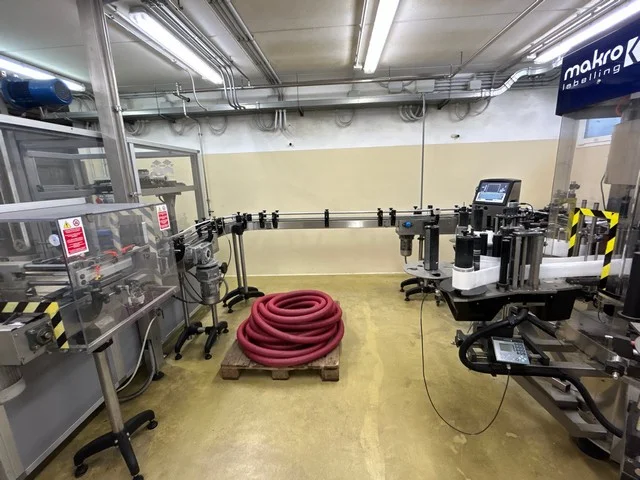

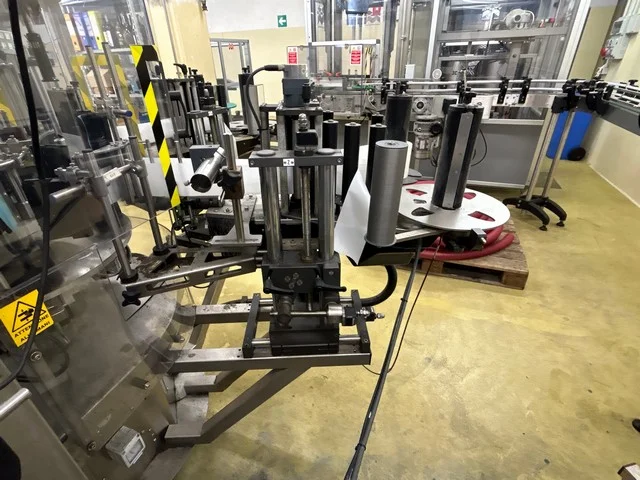

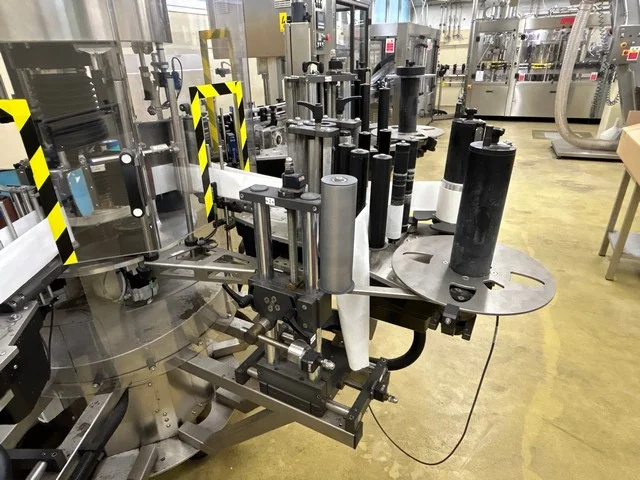

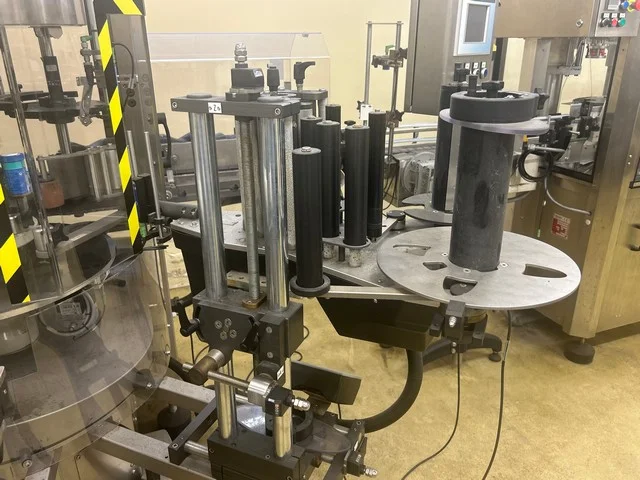

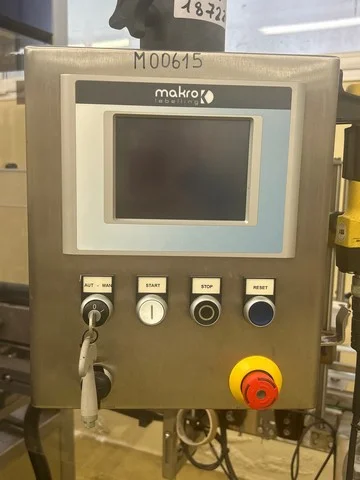

Makro 4t 3s self-adhesive labeling machine
Model: MAK 01 – 4P UA3 L3 CO1
Year: 2017
Clockwise direction of travel
4 electronic cam plates
3 self-adhesive stations
Applicable label types:
- Front
- Back
- L-shaped seal
Stretching clamp for L-shaped seal
Optical centering:
- Electronic with fiber optics: follower system
Label presence control

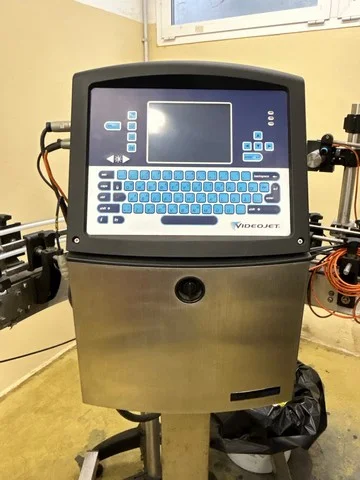

VideoJet inkjet marker
Model: 1210
Year: 2017

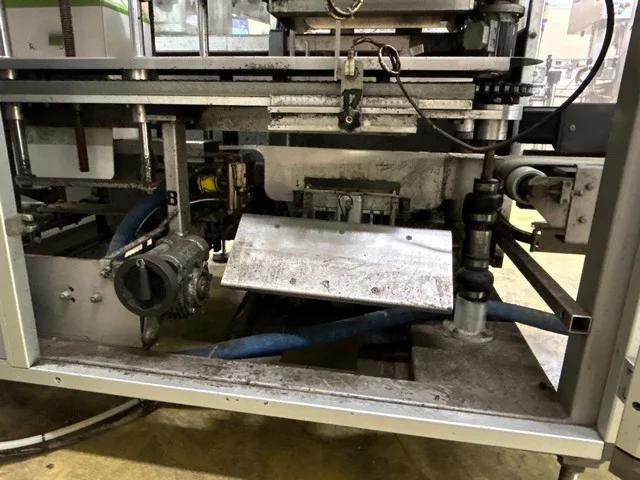

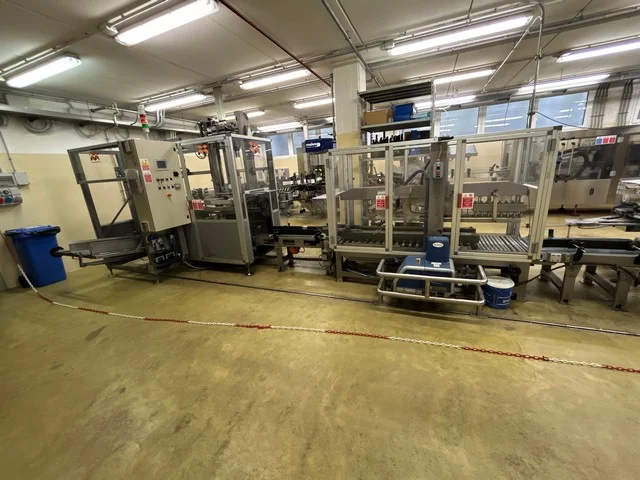

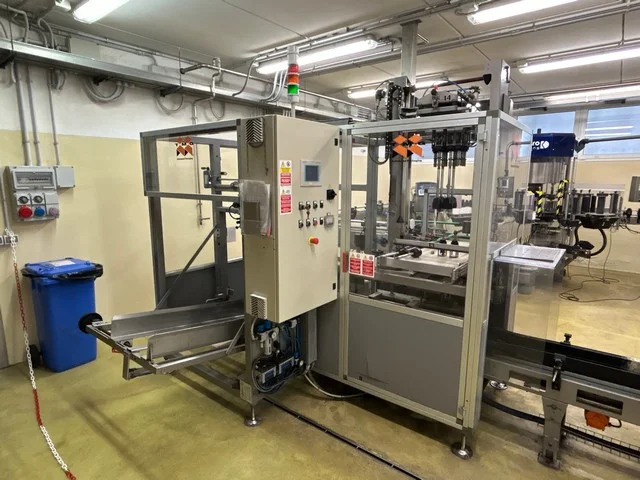

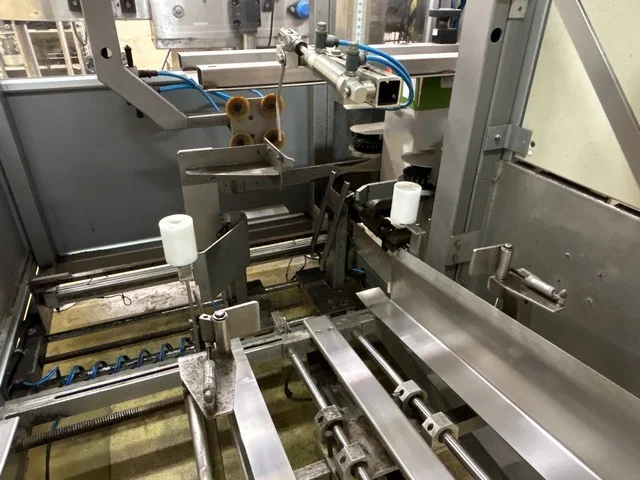

Monoblock (case former and case packer)
Model: MINICOMBI 8
Year: 2010

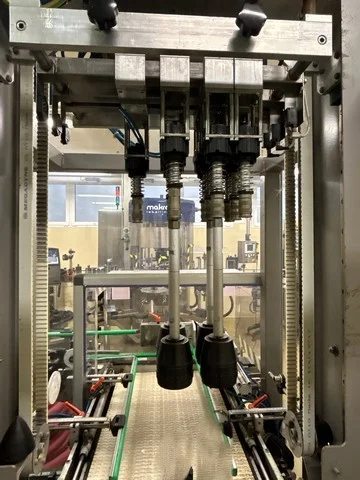

Single-head case packer with adjustable head
Works with 3x2 or 4x3 cartons

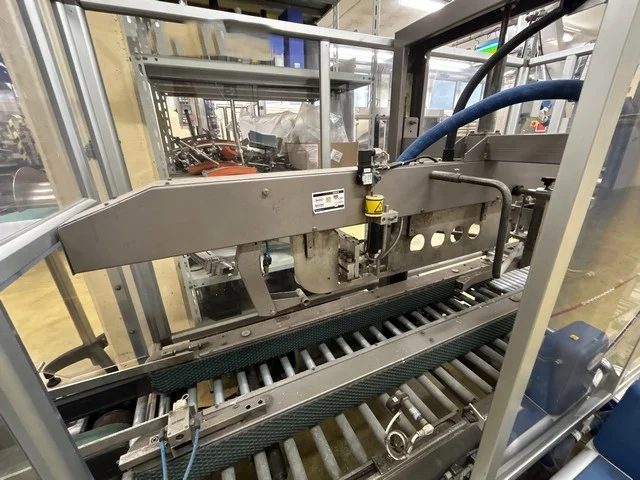

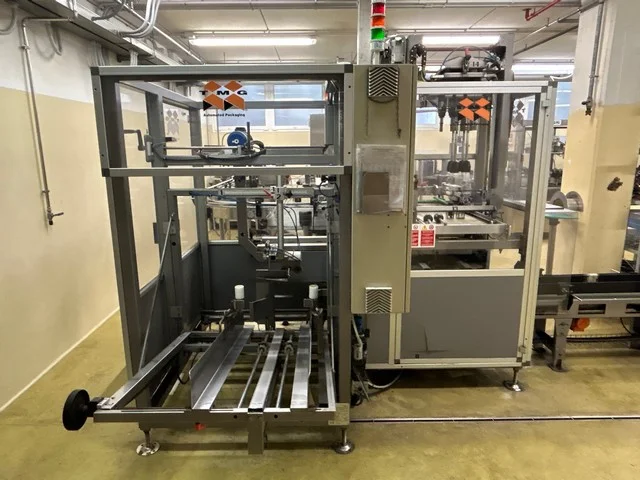

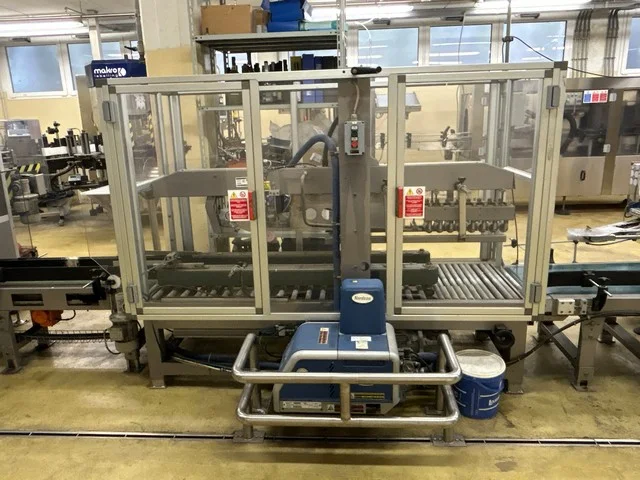

TMG carton closer with top hot-melt closure
Model: TM 2000 S
Year: 2010
Nordson hot-melt glue system, Mesa 4 model (also used in the monoblock to close the bottom of the carton)

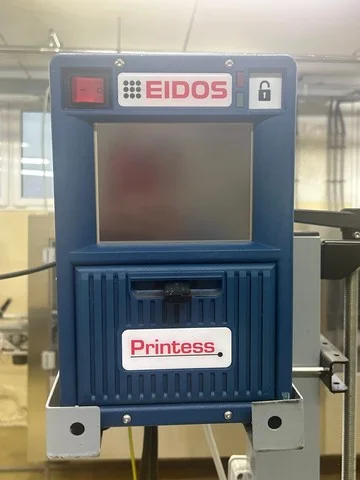

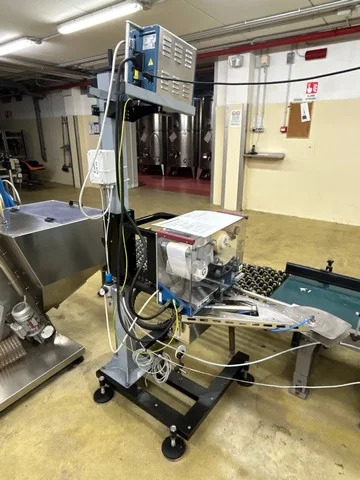

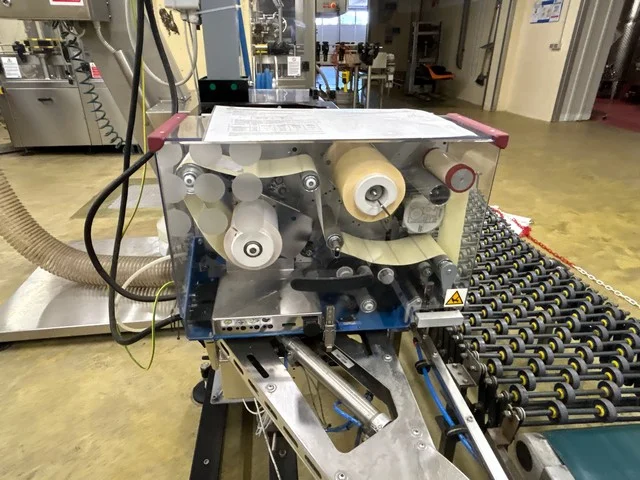

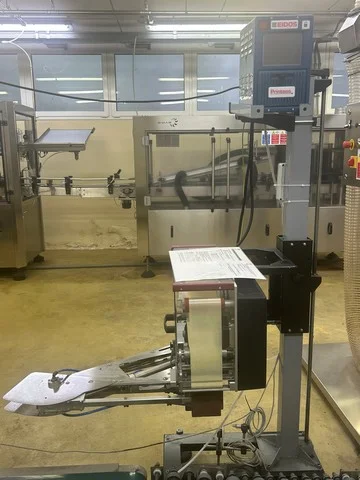

Eidos print-and-apply carton labeling machine
Model: 7P4ERSA
Year: 2021

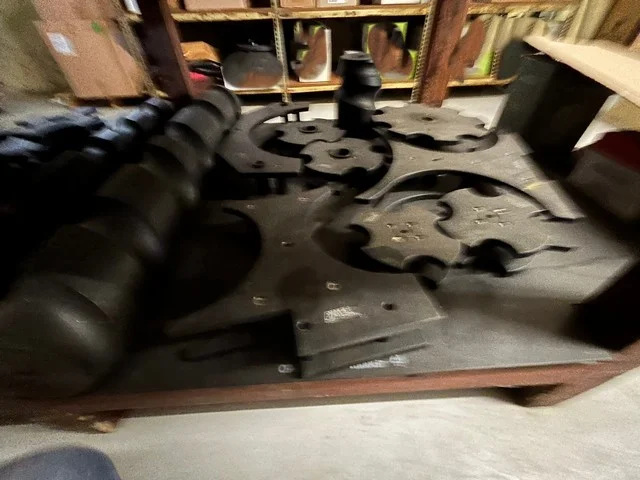

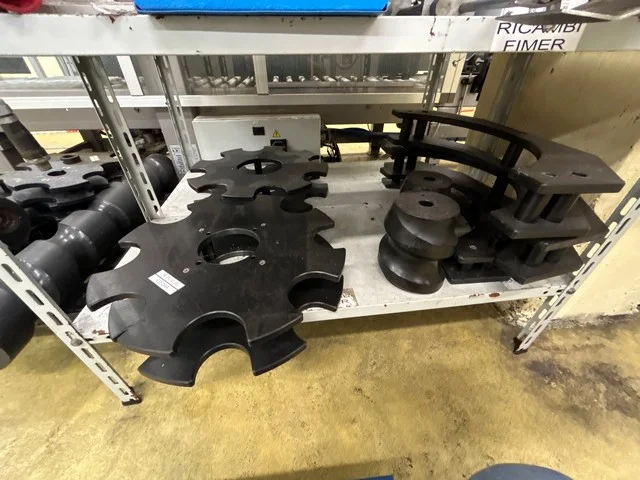

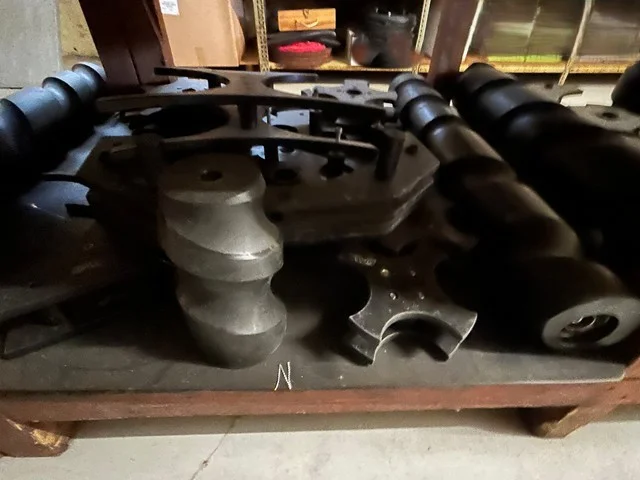

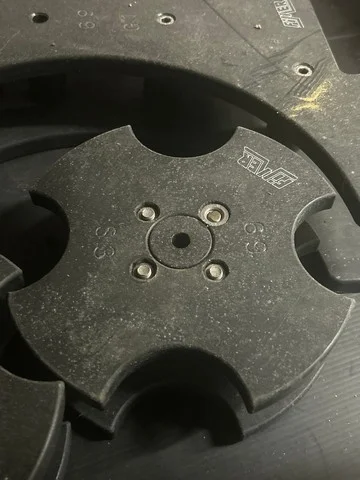

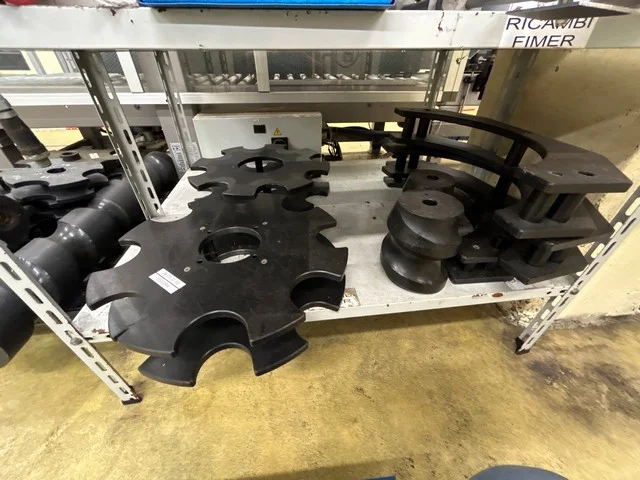

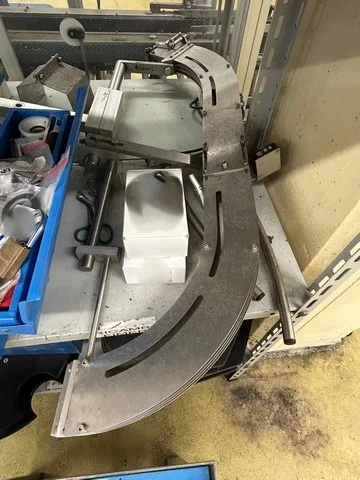

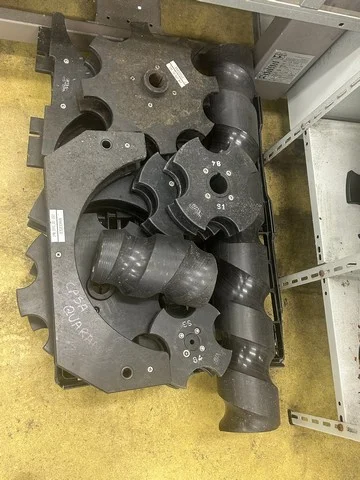

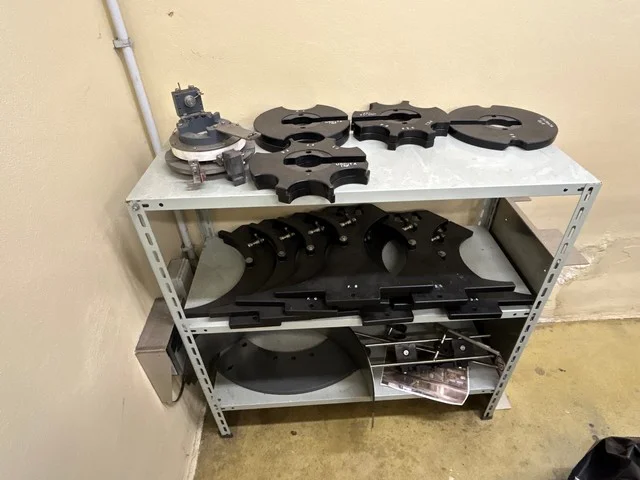

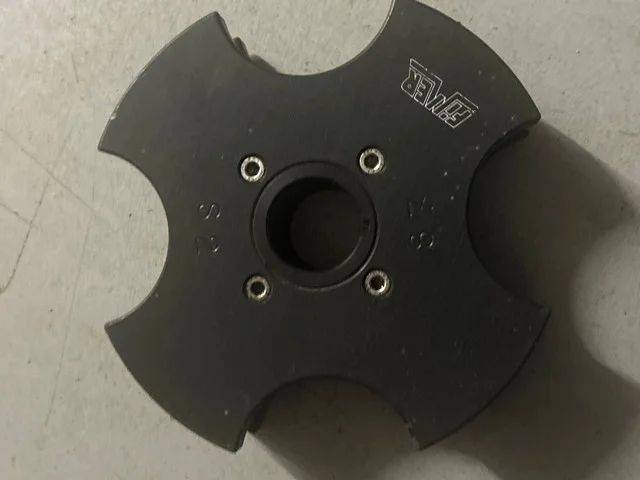

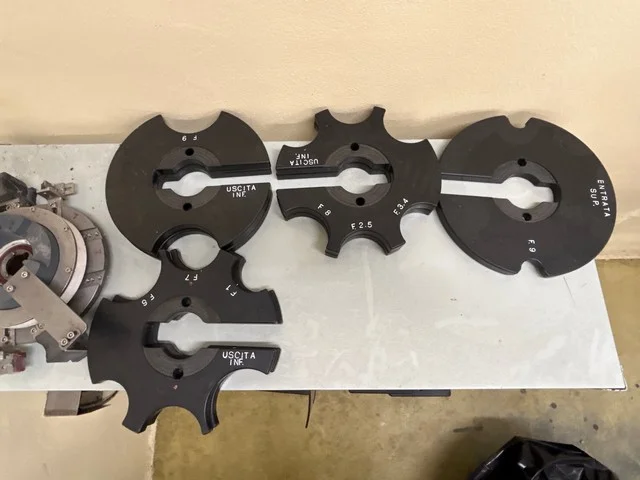

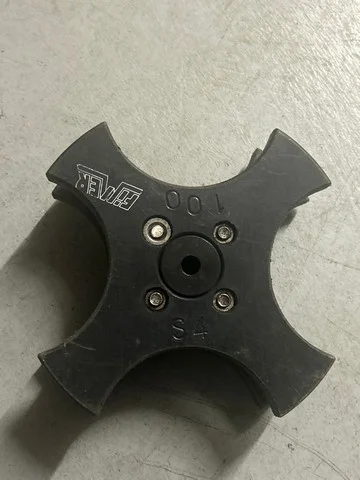

Available formats: Ø 67, 76, 82, 85, 98, 103
Safety guards

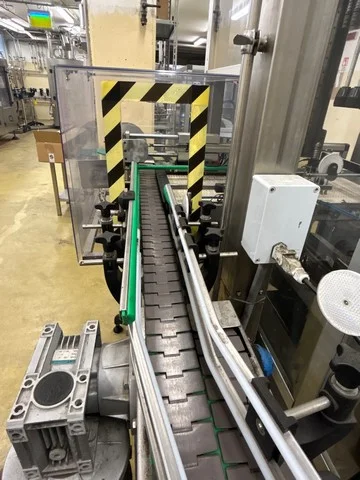

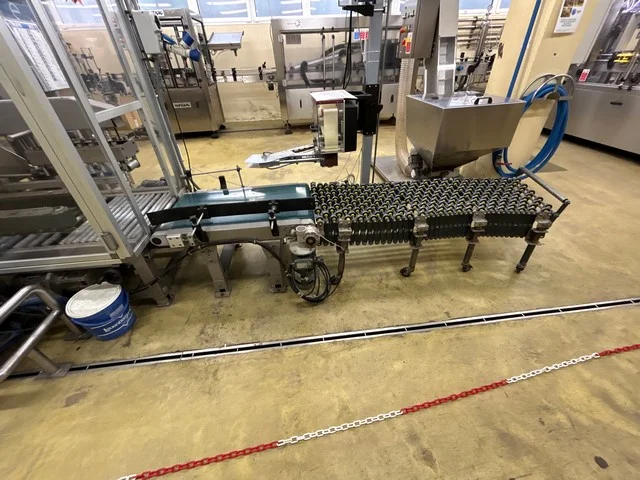

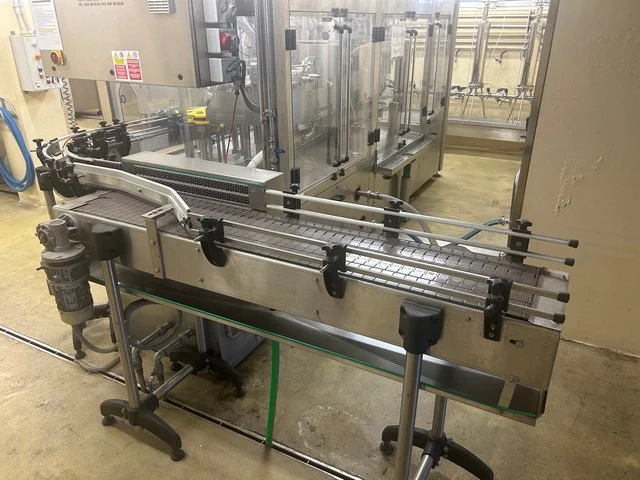

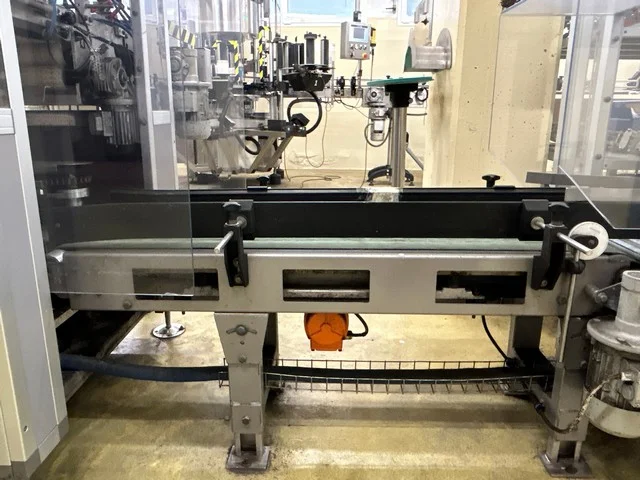

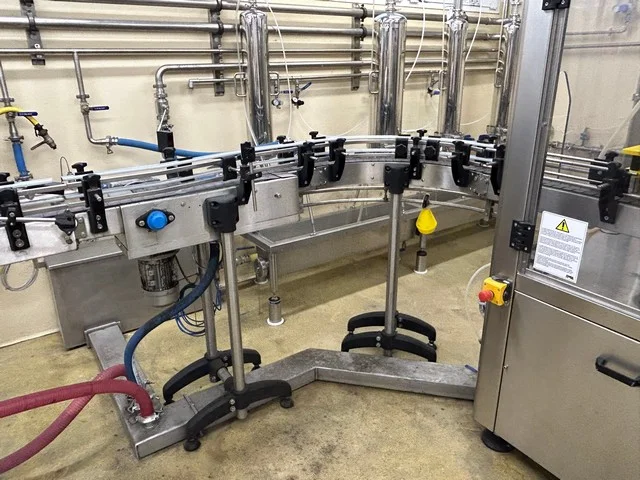

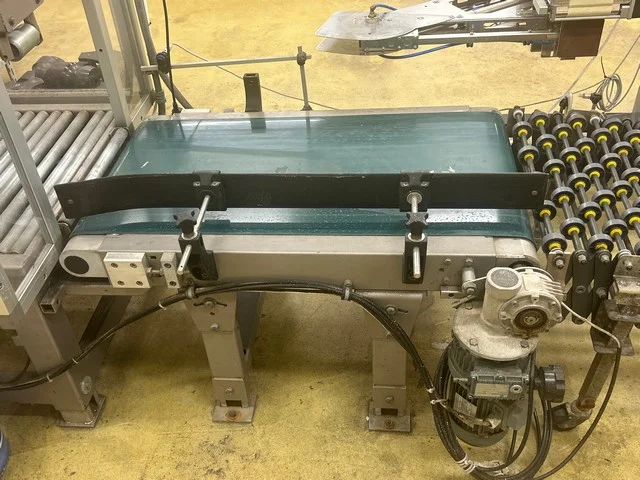

Bottle conveyor belts
