Product: wine
Type of container processed: glass bottles
Speed: 3,500 bph

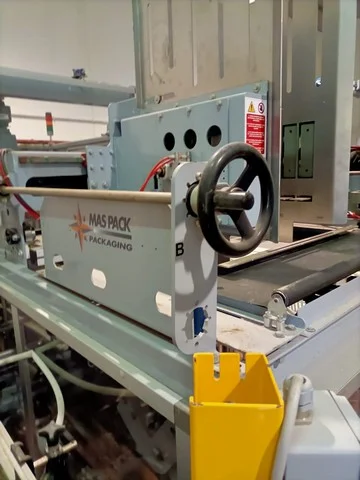

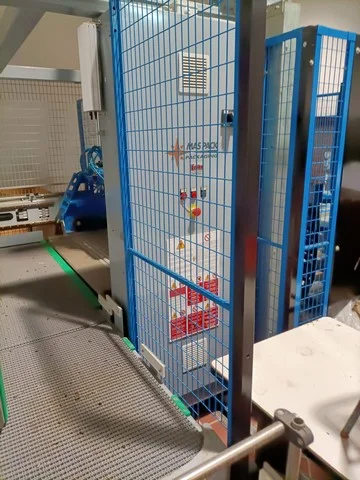

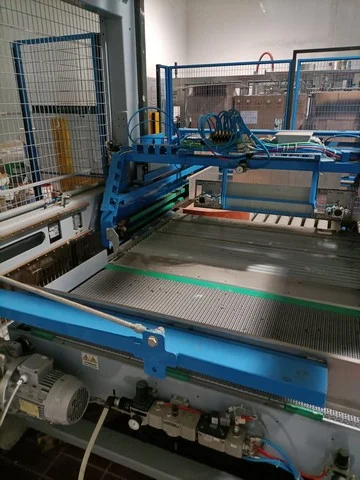

Mas Pack semi-automatic depalletizer with inflatable bars
Year: 2013

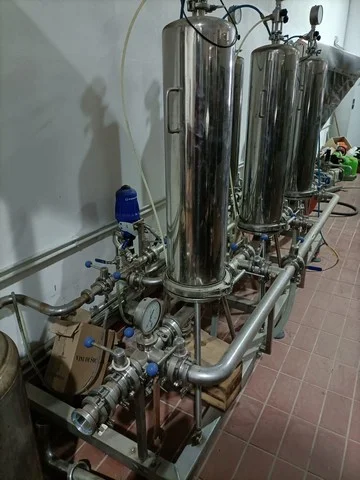

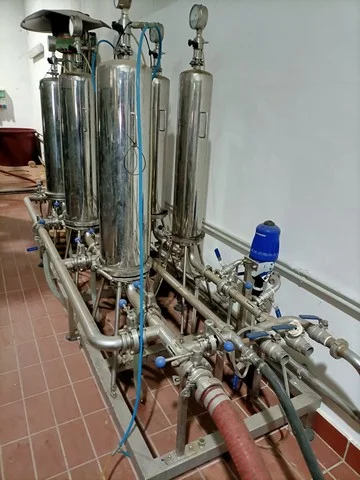

Microfiltration system
Year: 2013

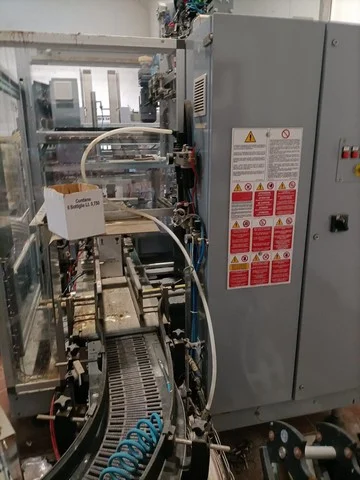

Bertolaso 16.16.1.1 monoblock
Model: Miniblock 16-16-1-1
Year: 2013
Clockwise direction of travel

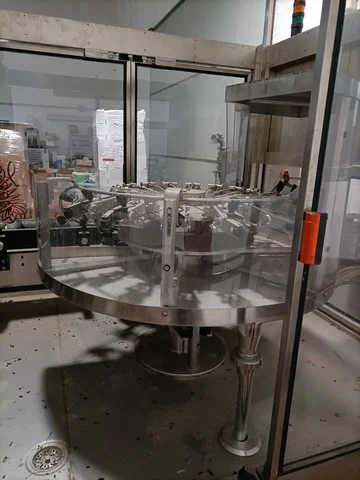

Rinser with 16 fixed-nozzle clamps, single treatment with inert gas

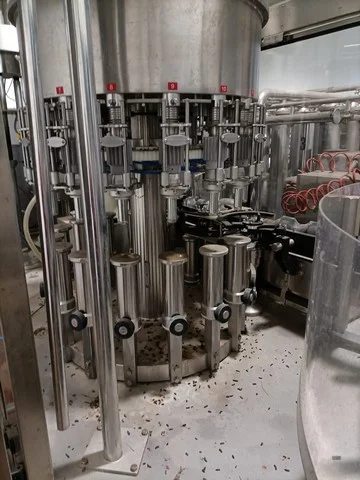

Filler with 16 mechanical gravity valves

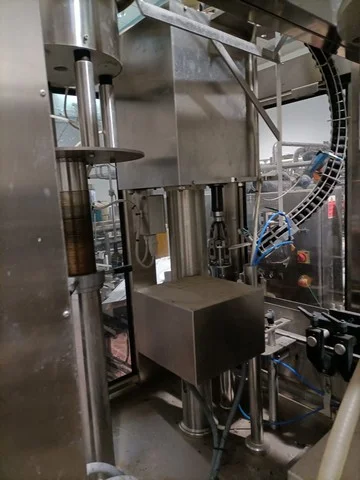

2 cappers:

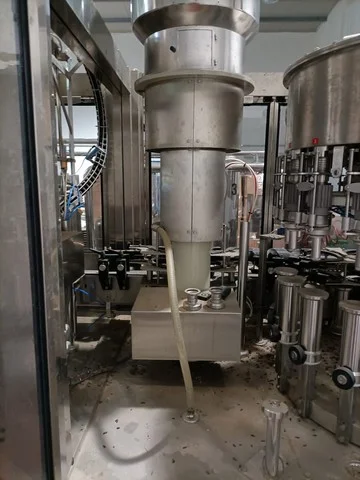

- Single-head flush cork capper
Vacuum system before corking
- Single-head aluminum screw capper Ø 30x60

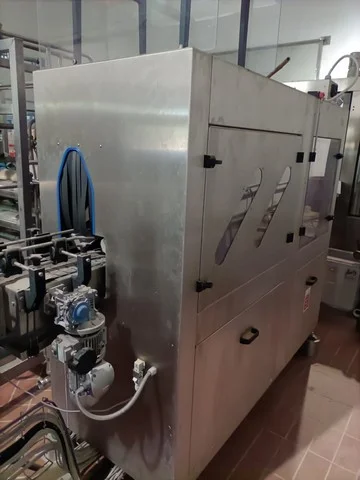

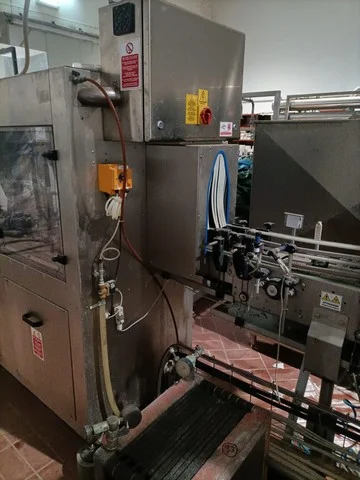

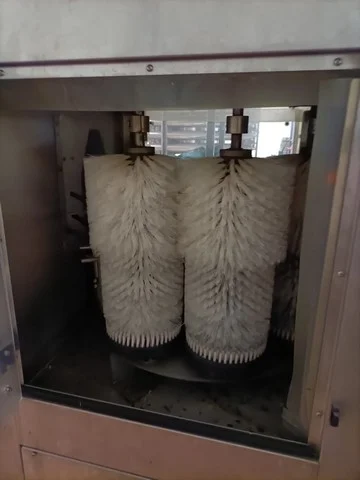

Single-head air-blade washer-dryer

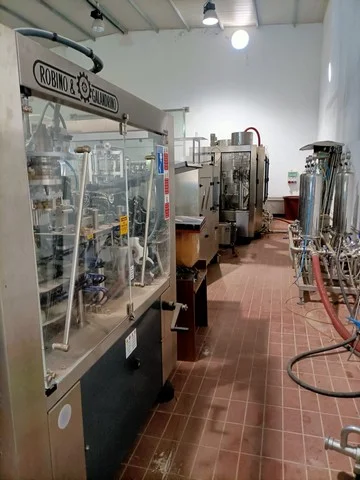

Robino e Galandrino capsule applicator
Model: FENIX2
Year: 2013
2 heads for polylaminate and PVC
Capsule magazine

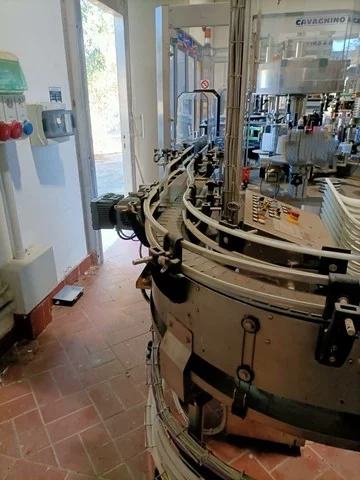

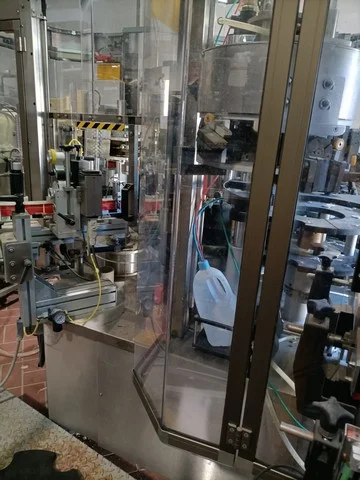

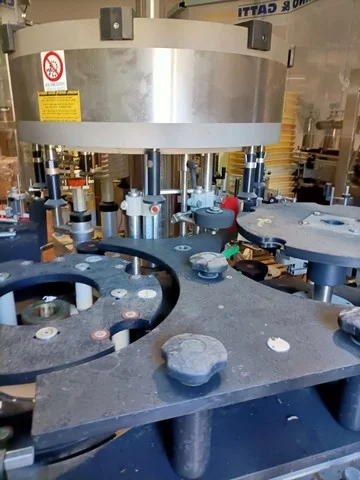

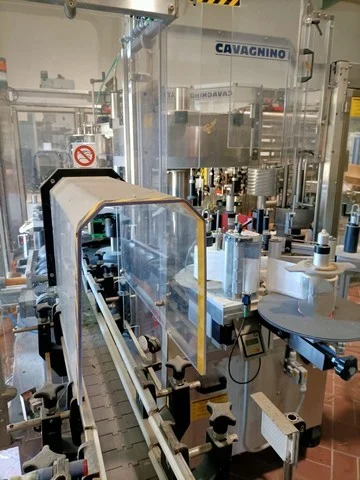

Cavagnino e Gatti labeler:
Model: CG – 72T – 1 -8 – 3RPS – 5CU
Year of manufacture: 2013
Counterclockwise direction of travel
8 mechanical cam plates
4 stations: 3 self-adhesive and 1 cold glue
Applicable label types:
- Front
- Back
- Wrap-around neck label/large neck label
- U-shaped tax seal (cold glue)
Clamp for stretching U-shaped seal
Thermal transfer marker
Additional stretching at bottle outlet

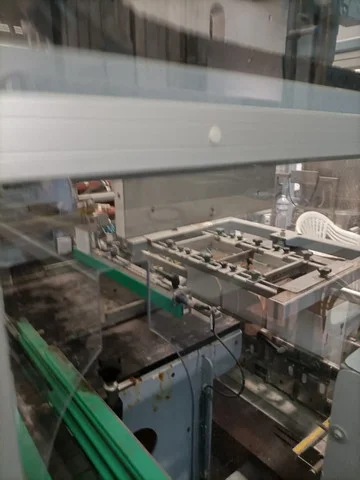

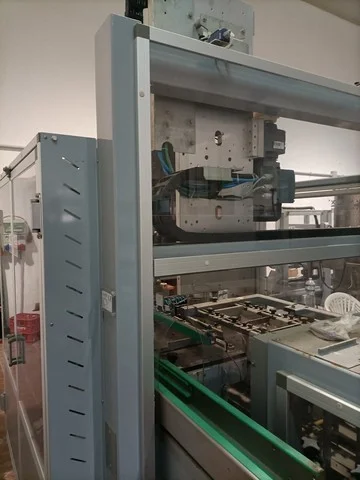

Cartoning monoblock
Model: Jollypack1
Year: 2013
Hot-melt glue case former

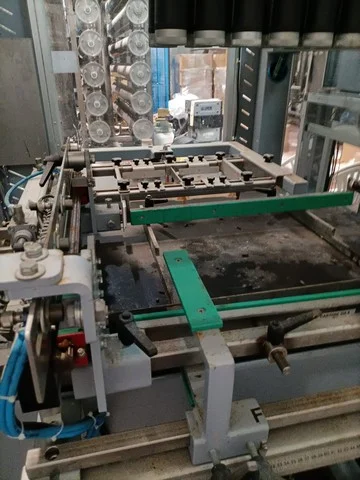

Case packer with 2 heads and 6 pick-ups per head

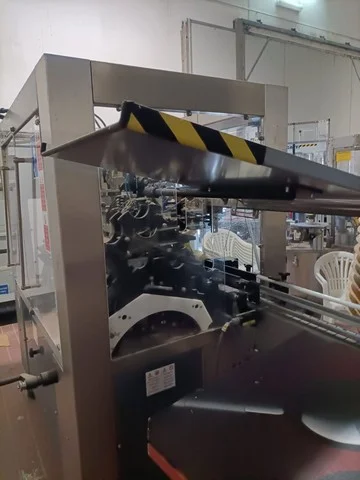

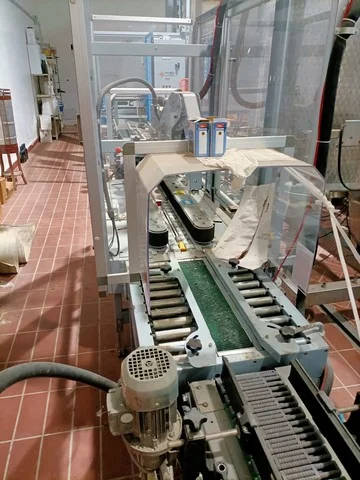

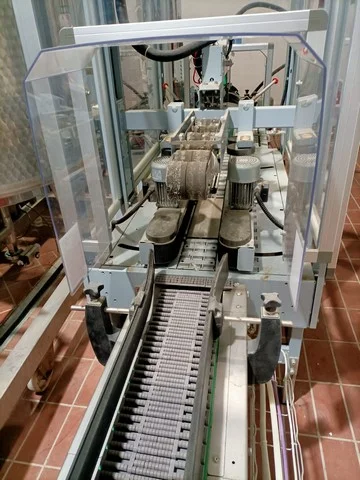

Case closer
Model: Seal JR
Year: 2013
Closure: top hot-melt glue closure (Preo Easy 5)

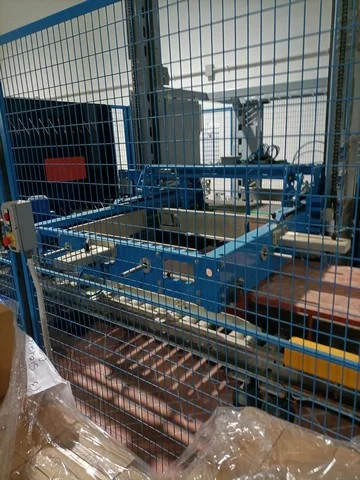

Clamp palletizer with pallet magazine
Model: Jollypal 900
Year: 2013

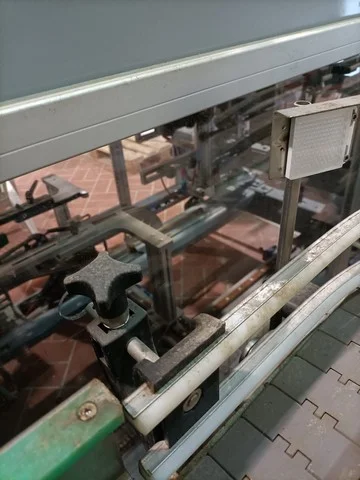

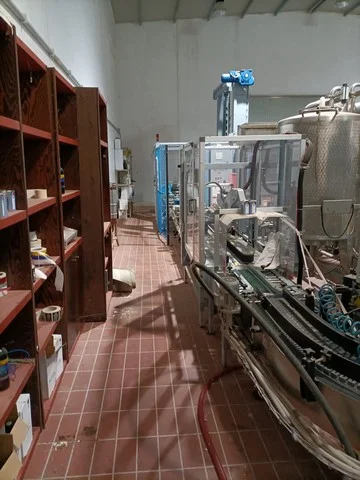

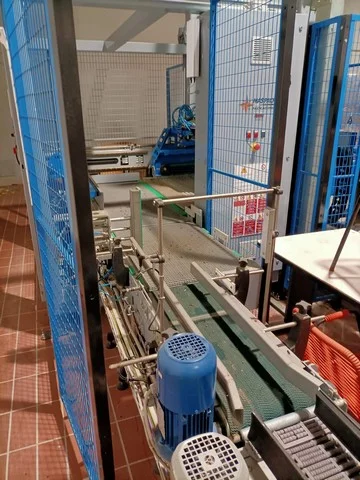

Bottle conveyors
Carton conveyors
